IEC 60811 Low Temperature Impact Test Apparatus Cable Insulation Sheath Impact Testing Equipment
  • name
  • name
  • name
  • name

IEC 60811 Low Temperature Impact Test Apparatus Cable Insulation Sheath Impact Testing Equipment

MOQ: 1 Set
Price: Negotiable
Standard Packaging: Plywood Case
Delivery Period: 30 days
Payment Method: T/T
Supply Capacity: 20 Sets Per Month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate(cost additional )
Model Number
SN2127
Applicable Standard:
IEC60811-1-4
Applicable Clause:
Clause 8.5
Test Station:
Single Station
Impact Height:
10~250mm
Sponge-rubber Pad:
40mm-thickness
Configured Weights:
100,200,300,400,500,600,750 G
Product Description



IEC 60811 Low Temperature Impact Test Apparatus Cable Insulation Sheath Impact Testing Equipment





Product Information:

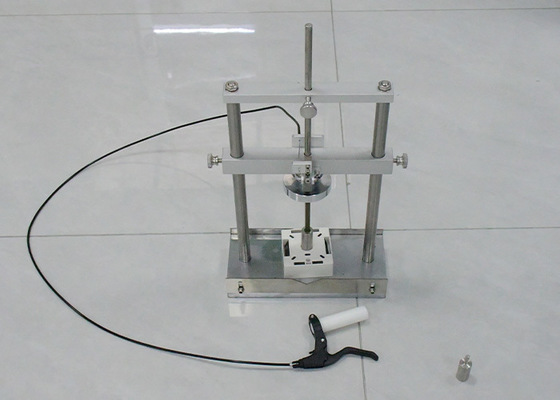

The Low Temperature Impact Test Apparatus is specially designed for testing the impact resistance of cable insulation and sheath materials under low temperature conditions. It complies with IEC 60811 and other related international standards, ensuring accurate and reliable results for cable performance evaluation.

This device is used together with a temperature chamber (prepared by the user) to simulate low temperature environments during impact testing. It is an essential instrument for cable manufacturers, testing laboratories, and research institutes.





Key Features:



Standard Compliance – Designed according to IEC 60811 and related standards

Adjustable Drop Height – 10 to 250 mm, suitable for different testing needs

Flexible Weights – Configurable with 100 g, 200 g, 300 g, 400 g, 500 g, 600 g, and 750 g weights

Durable Construction – High-quality materials ensure accuracy and long service life

Safety Accessory – Equipped with a 40 mm thick sponge-rubber pad for secure testing

Single Test Station – Easy to use, reliable operation in combination with temperature chamber





Technical parameters:



Parameter Specification
Standard IEC 60811 and other applicable standards
Test Method With temperature chamber (user-supplied)
Test Station Single station
Falling Height Adjustable from 10 mm to 250 mm
Configured Weights 100 g, 200 g, 300 g, 400 g, 500 g, 600 g, 750 g
Accessory 40 mm thick sponge-rubber pad




Applications:



Cable Insulation & Sheath Materials – Impact resistance testing at low temperatures
Wire & Cable Manufacturers – Quality control and R&D testing
Testing Laboratories – Standard compliance and certification testing
Research Institutes & Universities – Material durability and performance evaluation


IEC 60811 Low Temperature Impact Test Apparatus Cable Insulation Sheath Impact Testing Equipment 0

IEC 60811 Low Temperature Impact Test Apparatus Cable Insulation Sheath Impact Testing Equipment 1

IEC 60811 Low Temperature Impact Test Apparatus Cable Insulation Sheath Impact Testing Equipment 2
