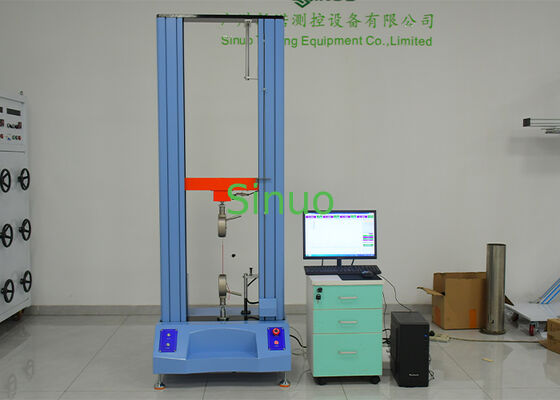

200kg Electronic Universal Tensile Testing Machine for Material Testing ASTM ISO Standard

MOQ: 1
Price: Customized
Standard Packaging: Plywood Case
Delivery Period: 30 Days
Payment Method: T/T
Supply Capacity: 20 Sets Per Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SNB02C-2KN
Test Strength Range:
0-200kg
Measurement Accuracy:
0.001Kg
Switch Units:
Kg, N, Lb, Mpa
Load Analysis:
1/250000
Speed Test Range:
0.05-500mm /min
Displacement Switch:
Mm, Cm, In
Test Effective Width:
400mm
Test Stroke:
1000mm (with Fixture)
Highlight:

200kg Electronic Universal Tensile Testing Machine

,

Electronic Universal Tensile Testing Machine

,

ASTM Standard Universal Tensile Testing Machine

Product Description
200kg Electronic Universal Tensile Testing Machine for Material Testing ASTM ISO Standard
The 200kg Electronic Universal Tensile Testing Machine (UTM) is a high-precision material testing system designed for evaluating the mechanical performance of metals, plastics, rubber, textiles, cables, packaging materials, composites and finished products.
Powered by advanced PC software and a high-performance servo drive system, the equipment performs tensile, compression, peel, tear, shear, bending and elongation tests with outstanding repeatability and measurement accuracy. Multiple report formats, customizable test methods and real-time curve analysis make it an ideal solution for R&D laboratories, production quality control and third-party testing organizations.
Suitable for applications requiring compliance with ASTM, ISO, GB, EN and other international material testing standards.
Main Features
High Accuracy Measurement
  • Capacity up to 200 kg
  • Force resolution up to 0.001 kg
  • Load accuracy of ± 0.5%
  • High sampling precision for reliable repeatability
Multiple Mechanical Tests
One testing system supports various material performance evaluations including:
  • Tensile strength
  • Compression resistance
  • Peel strength
  • Shear strength
  • Tear resistance
  • Bending/Flexural testing
  • Elongation analysis
Suitable for both raw materials and finished products.
Intelligent PC Software
The professional testing software provides:
  • English & Chinese interface
  • Automatic report generation
  • Word & Excel report export
  • User-defined test methods
  • Curve comparison
  • Statistical analysis
  • Historical data traceability
  • Custom formula calculation
Real-time display of multiple testing curves:
  • Load vs Displacement
  • Load vs Time
  • Displacement vs Time
  • Stress vs Strain
  • Stress vs Time
  • Strain vs Time

200kg Electronic Universal Tensile Testing Machine for Material Testing ASTM ISO Standard

Flexible Unit Conversion
Force Units: N, kN, kgf, lbf
Length Units: mm, cm, inch
Pressure Units: MPa
Stable Servo Drive System
The machine adopts:
  • High-performance servo motor
  • Precision Taiwan ball screw transmission
  • Stepless speed control
  • Computer closed-loop control
Testing speed can be adjusted continuously to suit different material requirements.
Comprehensive Safety Protection
To ensure operator safety and equipment durability, the tester includes:
  • Overload protection
  • Emergency stop
  • Upper & lower travel limits
  • Automatic specimen break detection
  • Automatic shutdown after test completion
Typical Applications
This Universal Testing Machine is widely used in:
  • Plastic products
  • Rubber materials
  • Metal components
  • Wire & Cable
  • Packaging materials
  • Adhesive tapes
  • Textile materials
  • Medical products
  • Composite materials
  • Building materials
  • Foam products
  • Electronic components
  • Automotive parts
Ideal for:
  • Quality Inspection Laboratories
  • Manufacturing Plants
  • Universities
  • Research Institutes
  • Certification Laboratories
  • Product Development Centers

200kg Electronic Universal Tensile Testing Machine for Material Testing ASTM ISO Standard

Technical Specifications
Item Specification
Product Type Electronic Universal Tensile Testing Machine
Maximum Capacity 200 kg
Force Resolution 0.001 kg
Load Accuracy ±0.5%
Load Resolution 1/250000
Force Units kg, N, lb, MPa
Effective Test Width 400 mm
Test Stroke 1000 mm (including fixture)
Speed Range 0.05-500 mm/min
Speed Control Continuous stepless adjustment
Displacement Resolution 0.001 mm
Displacement Units mm / cm / inch
Deformation Measurement Large deformation extensometer
Deformation Range 0.2%-100% FS
Drive System Servo Motor + Taiwan Precision Ball Screw
Standard Fixture Universal Fixture (0-7 mm opening)
Control Method PC Software Control
Software Language English
Curve Types Force-Displacement, Force-Time, Stress-Strain, etc.
Report Format Word / Excel
Power Supply AC220V 50Hz
Rated Power 1.0 kW
Machine Weight Approx. 150 kg
Software Advantages
The integrated testing software is developed for professional laboratories while remaining easy for daily operators.
Key capabilities include:
  • Multi-language interface
  • Guided testing workflow
  • Custom test program creation
  • User-defined calculation formulas
  • Editable test parameters
  • Automatic statistical analysis
  • Standard deviation calculation
  • Mean value calculation
  • Coefficient of variation analysis
  • Custom report templates
  • Word & Excel export
  • Data traceability
  • Real-time curve switching
  • Multi-thread processing for smooth operation
  • Built-in help documentation
  • Expandable testing modules for future applications

200kg Electronic Universal Tensile Testing Machine for Material Testing ASTM ISO Standard

Why Choose This Universal Testing Machine?
  • High-precision servo control system
  • Professional PC software with customizable reports
  • Wide testing speed range
  • Supports tensile, compression, peel, tear and bending tests
  • Real-time graphical analysis
  • ASTM / ISO compatible testing
  • Easy operation for laboratories and production lines
  • Reliable performance for quality control and research applications
