Temperature Rise Test Plugs | IEC60884-1 & DIN VDE 0620-1 Plug Gauge

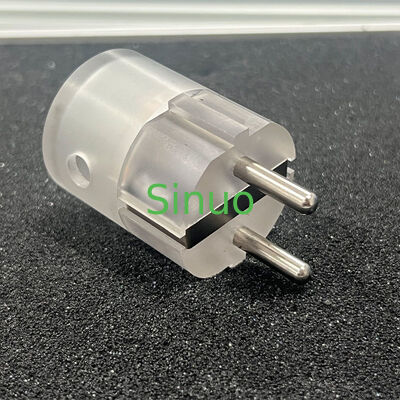

SN2223 Temperature Rise Test Plugs are standard calibrated test plugs — mandatory fixtures for running the temperature rise test described in IEC 60884-1:2022 Clause 19, and widely used together with the temperature rise dark container for concealed socket testing.

These thermal test plugs are manufactured strictly following DIN VDE 0620-1:2010 (Bild 16a and Bild 16d). They adopt brass contact pins made to the standard-specified minimum pin dimension. Each plug is fitted with at least a 1-meter connecting wire, meeting all wiring requirements of the temperature rise test procedure.

During socket temperature rise testing, these test plugs are inserted into the test sample socket, carrying the specified test current. The brass pins simulate real plug contact conditions; testers use thermocouples to monitor temperature increases at contacts and terminals. This setup verifies whether the socket's temperature rise stays within safe limits, helping to avoid insulation degradation, overheating, or fire hazards. This set contains two individual 2P+E test plugs for different rating tests: a 16A type (Bild 16a) and a 2.5A type (Bild 16d). It is a staple fixture for European VDE & IEC socket certification laboratories and socket manufacturers.

• Compliant with IEC 60884-1:2022 Clause 19 temperature rise test requirements for electrical accessories.
• Designed to DIN VDE 0620-1:2010 Figure 16a & Figure 16d German Schuko socket standard.
• Standard brass pins with defined minimum geometry, delivering consistent contact resistance and highly repeatable test results.
• Supplied with a ≥1 m connecting cable as required by the standard, ready to connect to a loading current source.
• 2P+E (two poles plus earth) structure, matching European grounded socket testing.
• Two specifications in one set — 16A and 2.5A — covering different rated current test scenarios.
• Precision-machined pins with stable performance for long-term repeated laboratory testing.
• Perfect matching partner for our SN2222-1 Temperature Rise Dark Container (concealed box fixture).

• Temperature rise certification testing for VDE Schuko sockets
• IEC 60884-1 type testing for flush and surface-mounted socket outlets
• Third-party testing laboratories for European market certification
• Socket factory R&D verification, pre-compliance testing, and batch inspection
• Used with power loading units, temperature data loggers, and thermocouple measurement systems

1. IEC 60884-1:2022 Clause 19 — Temperature rise test of socket-outlets and plugs
2. DIN VDE 0620-1:2010 Figure 16a, Figure 16d

The pins are made of brass material with the minimum dimension specified by DIN VDE 0620-1. The attached connecting wire length is a minimum of 1 meter, which eliminates the need for extra wiring modification before testing. This fixture is not for regular power supply. It is only used for standard temperature rise testing of socket outlets. It is commonly paired with our SN2222-1 dark container for concealed socket thermal testing.
