VDE0620 Household Appliance Plugs And Sockets Temperature Rise Test Set Up

MOQ: 1 Set
Price: Negotiable
Standard Packaging: Plywood Case
Delivery Period: 30 days
Payment Method: T/T
Supply Capacity: 10 Sets / Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate(cost additional )
Model Number
SN2119
Test Stations:
2 Stations Independently
Test Sample:
Household Plugs&Sockets
Test Current:
0-60A
Test Voltage:
<12V
Accuracy:
±0.5%FC±2d
Timing Range:
Optional
Temperature Channel:
8 Channels
Display:
LCD Digital Display
Highlight:

Sockets Temperature Rise Test Set Up

,

Appliance Plugs Temperature Rise Test Set Up

Product Description
VDE0620 Household Appliance Plugs And Sockets Temperature Rise Test Set Up
Product Overview

Looking for a reliable Temperature Rise Test Setup that complies with IEC 60884-1 and other international electrical safety standards? This equipment demonstrates the complete testing process of the Temperature Rise Test System designed for plug and socket-outlet temperature rise testing.

Manufactured in accordance with IEC 60884-1:2022 Clause 19, IEC 60669-1:2017 Clause 17, VDE 0620, and other relevant standards. Widely used by electrical appliance manufacturers, plug and socket manufacturers, testing laboratories, certification bodies, and quality inspection organizations to evaluate temperature rise performance under rated current conditions.

Applications
Parameter Details
Samples Household appliance plugs and sockets
Test Purpose Test the temperature rise of electrical accessories under working conditions
Test Principle Use voltage and current to simulate normal use of the workpiece, and measure temperature rise after specified time period
Equipment Structure External type with built-in temperature measuring meter, thermocouple wire directly connected to sample
Dimensions Approximately 600 × 600 × 600 mm (W × D × H)
Weight 100kg
Environmental Requirements Power supply: AC220V±10%/50-60Hz, working temperature 0-40℃, humidity 30%-90%
Technical Parameters
Parameter Specification
Model SN2119
Test Stations 2 stations independently adjustable, each group has two outputs in series
Test Current 0-60A
Test Voltage <12V
Digital Display Current Accuracy: ±0.5%FC±2d
Timing Digital display, range 0～99.99s～99.99m～99.99h selectable, alarm when time arrives
Temperature Measurement Temperature inspection instrument, 8 channels, LCD digital display, with temperature-time curve
Power Supply AC220V±10%/50-60Hz
Standard IEC 60884-1
Test Samples Plug and socket-outlets
Key Features
  • IEC 60884-1 compliant Temperature Rise Test Equipment
  • Independent dual test stations for higher testing efficiency
  • Adjustable test current from 0-60 A
  • High-precision digital current display
  • 8-channel temperature measurement system
  • Real-time temperature curves and bar graph visualization
  • Programmable timer with automatic alarm
  • Stable output for long-duration temperature rise testing

The integrated temperature acquisition system records temperature changes continuously, allowing engineers to observe heating trends, identify abnormal temperature increases, and generate reliable test data for product validation and certification.

Suitable For Testing
  • Electrical plugs
  • Socket-outlets
  • Extension sockets
  • Power connectors
  • Electrical accessories
  • Low-voltage electrical products

With intuitive operation and accurate temperature monitoring, the system improves testing efficiency while ensuring repeatable and standards-compliant results.

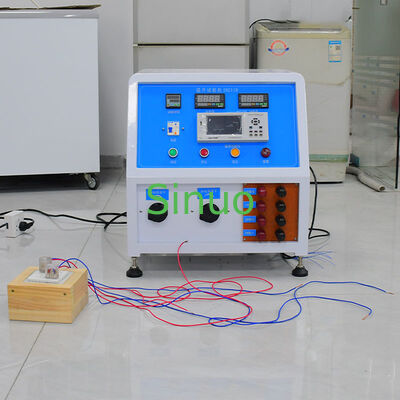

VDE0620 Temperature Rise Test Setup - Front View VDE0620 Temperature Rise Test Setup - Side View
