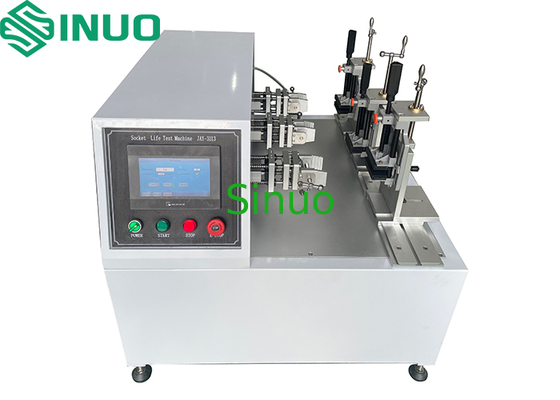

3-Station Synchronous Plugs Socket-outlets Switches Endurance Test Equipment
| Test Station: | 3 Synchronous Stations | Test Times: | 0～999999 Times |
| Conduction Time: | 0～99.9s | Close Time: | 0～99.9s |
| Test Stroke: | Linear: 0～100mm | Test Speed: | Linear: 0～100mm/s |
| High Light: | 3 station socket outlet tester,electrical switch endurance equipment,synchronous plug test device |
||
This test equipment features 3 synchronous work stations capable of simultaneously testing 3 linear switches, 3 plugs, or 3 sockets. The system automatically stops and alarms if any station experiences abnormal operation.
The device complies with international standards including IEC 60335-1 Annex H, IEC60065:2014 clauses 14.7 and 15.1, IEC 60884-1 2013 clauses 20-21, IEC 61058-1, and IEC60669-1.
When used with an optional load cabinet, this equipment performs making/breaking ability tests and normal operation endurance tests for household plugs, sockets, and linear switches. These tests evaluate mechanical durability and electrical fatigue resistance, detecting issues like contact adhesion or failure to maintain on/off positions.
- Aluminum alloy rack with stainless steel seal plate
- Servo motor and ball screw drive system
- 7-inch color touch-screen interface for parameter setting
- PLC control system (Mitsubishi)
- Programmable test cycles, speeds, and strokes
| No. | Item | Parameters | Remark |
|---|---|---|---|
| 1 | Power | AC 220V±10V, 50Hz | |
| 2 | Station | 3 synchronous stations | For testing plugs, sockets, linear switches |
| 3 | Operation interface | 7-inch color LCD touch screen | |
| 4 | Drive mode | Servo motor + ball screw | |
| 5 | Control system | PLC control system | Mitsubishi |
| 6 | Test times | 0～999999 times, can be preset | |
| 7 | Conduction time | 0～99.9s, can be preset | |
| 8 | Close time | 0～99.9s, can be preset | |
| 9 | Test stroke | Linear: 0～100mm, can be preset | |
| 10 | Test speed | Linear: 0～100mm/s, can be preset | |
| 11 | Atmospheric pressure | 80～106kpa | |
| 12 | Ambient temperature | 5～40°C | |
| 13 | Relative humidity | (20～90)%RH | |
| 14 | Use environment | No vibration, no electromagnetic interference, no dust, no corrosive gases, good ventilation required | |
| 15 | Dimensions and weight | 960×730×600mm, 160kg |
