IEC 61386-21 Figure 101 Bending Apparatus For Metallic And Composite Conduits
  • name
  • name

IEC 61386-21 Figure 101 Bending Apparatus For Metallic And Composite Conduits

MOQ: 1
Price: Customized
Standard Packaging: Plywood Case
Delivery Period: 30 days
Payment Method: T/T
Supply Capacity: 20 Sets Per Month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN2902
Applied Standard:
IEC 61386-21
Applied Clause:
Clause 10.4.101
Sample Conduit Diameter:
16/20/25mm
Inner Bending Radius:
96/120/150mm
Outer Bending Radius:
113/141/178mm
Groove Radius:
8.1/10.1/12.7mm
Highlight:

IEC 61386-21 Bending Apparatus

,

Metallic Conduits Bending Apparatus

,

Composite Conduits Bending Apparatus

Product Description



IEC 61386-21 Figure 101 Bending Apparatus For Metallic And Composite Conduits





Product information:



Applicable to heat resistance test of various semi-rigid casings and corrugated pipes, to determine the required heat resistance value of the pipe, and thus determine its heat resistance strength. It complies with GB20041.21-2008 "Cable Management Conduit System Special Requirements for Rigid Conduit System", GB/T14823.2 "Electrical Installation Conduit Special Requirements-Rigid Insulating Material Flat Conduit". And JG3050 "Insulating Electrical Conduit and Accessories for Buildings" and ZBG33008 "Polyvinyl Chloride Plastic Corrugated Wire and Wire Tube". IEC61386-21 Clause 10.4.101 and Figure 101 and other requirements

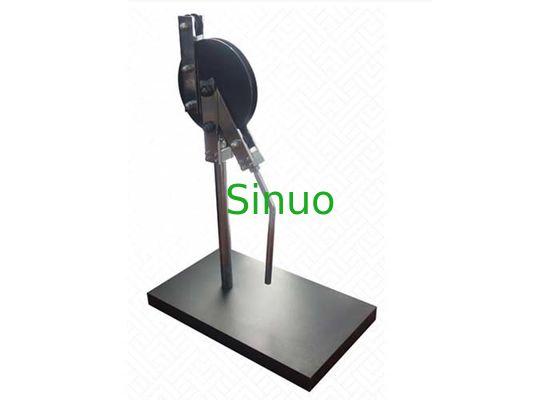

IEC 61386-21 Figure 101 Bending Apparatus For Metallic And Composite Conduits 0



Technical parameters:



Apparatus specification selection table:

Item Specification
Sample conduit diameter (mm) 16 20 25
Inner bending radius (mm) 96 120 150
Outer bending radius (mm) 113 141 178
Groove radius (mm) 8.1 10.1 12.7
Weight (kg) 26 32 41
Dimension (mm) 300*500*710 300*500*770 300*500*840



IEC 61386-21 Figure 101 Bending Apparatus For Metallic And Composite Conduits 1
