| MOQ: | 1 |
| Price: | Customized |
| Standard Packaging: | Plywood |
| Delivery Period: | 30 Days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 20 Sets Per Month |

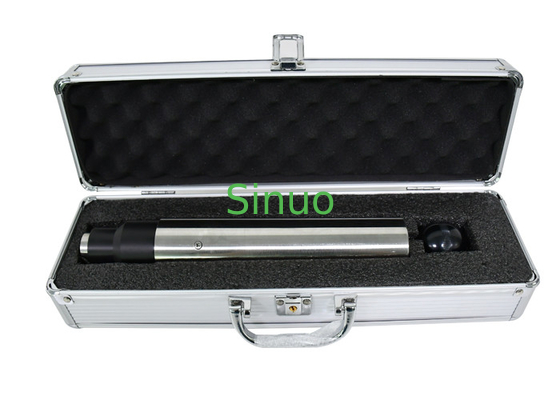

IEC 60068-2-63 Manually Spring Hammer Tester 2J Energy Impact Test Set
Product Overview:
Spring hammers (impact hammers) are manufactured in accordance with IEC60068-2-63 and IEC60068-2-75 standards. The hammer is used to test the impact resistance of housings, operating arms, handles, knobs, indicator lamps and lamp shades of electrical appliances for domestic or similar purposes, in order to verify the safety performance and strength of the product.
Technical Parameters:
|
Model |
SN2207-2J |
|
Impact energy |
2J±0.1J |
|
Impact element mass |
500g±5g |
|
Overall mass |
1500g±10g |
|
Material |
Stainless steel |
Operation steps:
1. Please fix (or place) the sample according to the relevant standard.
2. Select the shock test point. Then pull the locking knob until the release pawl engages the hammer teeth (a "click" is heard). At this point, the instrument is in the ready state.
3. Make the instrument perpendicular to the impact test point on the surface of the sample and fully contact it, then press down on the instrument body, release the hammer, and finally hit the surface of the sample.
