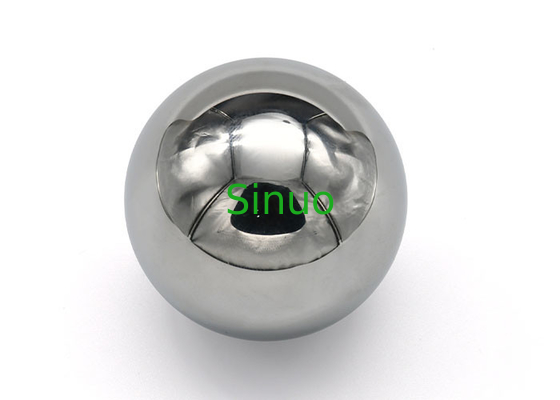

IEC 61032 Test Probes 1 Fig. 5 Ф50mm For Housing Intrusion Test

Basic Properties
Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN2210-5
Trading Properties
Minimum Order Quantity: 1
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 60 Sets Per Month
Tags

switch endurance tester

Switch tester

plug socket tester
Specifications
Applied Standard: IEC 61032 Model: SN2210-5
Rigid Sphere Diameter: Ф50mm Rigid Sphere Material: Steel
Applied Figure: Figure 5 Name: Test Probe 1
Rigid Sphere Diameter (mm): Ф50+0.05 0 Brand: Sinuo
High Light:

IEC 61032 Test Probes

,

50mm Test Probes
Product Description



IEC 61032 Test Probes 1 Fig. 5 Ф50mm For Housing Intrusion Test



Product information:



The probe meets the requirements of the standard IEC 61032 Test Probe 1 Fig. 5, as well as many standards such as IEC 60529, IEC 60335-1, IEC 60065 for IP1 testing.

This Test Probe 1 is used to verify the enclosure's level of protection against the ingress of solid foreign objects with a diameter of 50 mm or larger.



Techincal Parameters:



Model

SN2210-5

Name

Test probe 1

Rigid Sphere Diameter (mm)

Ф50+0.05 0

Rigid Sphere Material

Steel

Test Procedures and Operation


Please refer to the relevant standards.

IEC 60529:2013 clause 13.2 is used as an example:

Push the object probe against any opening in the housing with the force specified in Table 7.

The test probe has no built-in force and if a specific applied force is required, the test probe should be used in conjunction with a force gauge (use the force gauge to apply the required force directly to the probe).

IEC 61032 Test Probes 1 Fig. 5 Ф50mm For Housing Intrusion Test



Notice



1. Do not damage the shape of the device (e.g. scratching, bending, etc.).

2. Protect from dust and humid environment so that oxidation will not affect dimensional accuracy.

IEC 61032 Test Probes 1 Fig. 5 Ф50mm For Housing Intrusion Test

IEC 61032 Test Probes 1 Fig. 5 Ф50mm For Housing Intrusion Test
