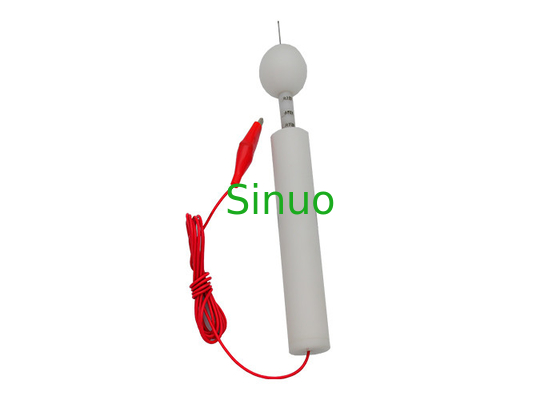

IEC62368-1 2018 High Quality Test Probe With 1N Force SN2210-4AT
Product information:
This probe is taken from IEC61032 figure 4 but only 20mm±0.2mm length, required by IEC 62368-1:2018 Annex V.1.6,. This rod probe is intended to verify the protection of persons against access to hazardous parts. It is also used to verify the protection against access with a wire.
can be used for anti-electric shock test when equipped with alligator clip. Or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer). The probe whose model number is with "T" is with force.This probe is taken from IEC61032 figure 4 but only 20mm±0.2mm length, required by IEC 62368-1:2018 Annex V.1.6,. This rod probe is intended to verify the protection of persons against access to hazardous parts. It is also used to verify the protection against access with a wire.
can be used for anti-electric shock test when equipped with alligator clip. Or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer). The probe whose model number is with "T" is with force.
Parameters:
|
Parameters /Model |
SN2210-4AT |
|
Name |
Test rod probe with 1N force |
|
1 |
Ф1+0.05 0 (mm) |
|
2 |
SФ35±0.2 (mm) |
|
3 |
Ф10 (mm) |
|
4 |
20±0.2 (mm) |
|
5 |
---- |
|
6 |
1N force |
Operation Steps:
Please refer to the relevant standards. The rigid test wire of the test probe of Figure V.5 is inserted into the applicable opening with a force up to 1N±0.1N and with the length limited to 20mm±0.2mm. While inserted, the probe is moved in any angle with minimal force.
Notice:
1. For verifying whether LIVE PARTS touched, the probe is equipped with alligator clip, recommended to work with our anti-shock probe experiment device or a 40~50V voltage indicator. Showing as following reference picture:
2. Please do not damage the appliance shape (such as scratching, bending, etc.).
3. Prevented from dust and moisture environment, in order to avoid the oxidation to affect the dimensional accuracy.
4. Be careful of electric shock.
