IEC 60884 Apparatus For Testing To Abnormal Heat Of Insulating Sleeves Of Plug Pins
Product Information For Testing To Abnormal Heat Of Insulating Sleeves Of Plug Pins:

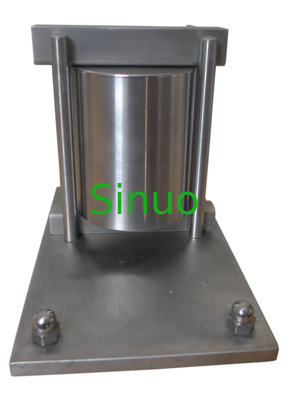

This apparatus confirms to the standard requirement of IEC60884-1 clause 24.19 figure 38. It is used to test the pressure-resistant properties of the electrical accessories and mounting box under the circumstance of being heated. This testing equipment should be put into use with the heating box.
This device comprises two steel jaws, having a cylindrical face of 25 mm radius, a width of 15 mm and a length of 50 mm. The length of 50 mm can be increased, depending on the size of the accessory to be tested. The corners are rounded with a radius of 2.5 mm. The specimen is clamped between the jaws in such a way that these press against it in the area where it is gripped in normal use, the centre line of the jaws coinciding as nearly as possible with the centre of this area. The force applied through the jaws is 20 N. The test occurs in a heating cabinet at a temperature of (80±2) °C.
Technical Parameters For Testing To Abnormal Heat Of Insulating Sleeves Of Plug Pins:
| Weight: | 20N (including the moving pressing plates) |
| Pressing plate size | Length: 50mm, width: 15mm, cylindrical face: radius is 25mm, the corners are rounded with a radius of 2.5 mm. |
| The inside of the guides distance | 50mm×15.4mm |
| Material | SUS304 stainless steel |
Test Method For Testing To Abnormal Heat Of Insulating Sleeves Of Plug Pins:
1. Before first use, user should familiar with the relevant standards for more effective and
proper using the test apparatus and completing the test.
2. According to the standard requirements for sample pretreatment before use.
3. The pressing plate (small) is placed between the guides (narrow side), cylindrical face is upward, the specimen is placed horizontally on the pressing plate, then place the pressing plate (big) on the specimen and the cylindrical face is downward, finally put the weight on the pressing plate (big), test time is 1 hour.
