| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | Standard Exporting Boxed |
| Delivery Period: | 30 Days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 20 Sets Per Month |

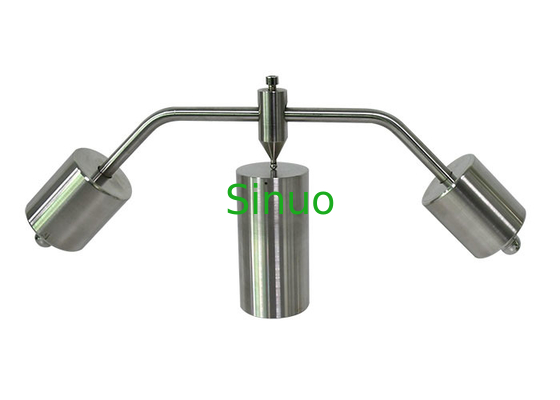

a-Ball Pressure Test Apparatus
Product information:
The Ball Pressure Tester conforms to many standard requirements like IEC 60335-1 clause 30 & IEC 60695-10-2, etc. It is used for testing the heat resistance of the electrical enclosure and external parts which are made up with the insulating materials. It is applicable to electrotechnical equipment and its subassemblies and components. It is also used for solid electrical insulating materials except ceramics.
In this test, a conditioned specimen is placed on a preheated support and subjected to a force of 20N applied through a 5mm steel ball. The test stand, specimen and loading device are then kept in an oven at an elevated temperature for an hour. After the hour, the loading device is removed from the sample, the sample is cooled and any indentation is measured. It is important to assure that the test stand has reached a stable elevated temperature as required by the test.
Technical parameters:
Ball Diameter: Ø5mm ±0.05mm
Hemisphere tip: R2.5mm
Ball Pressure:20N±0.2N (includes loading device and ball)
Test Stand: 100mm high x 50mm diameter, hole diameter:1.2mm
Material: Stainless steel
Ball: Hardened steel
|
|
