| MOQ: | 1 |
| Price: | Customized |
| Standard Packaging: | Aluminium Box |
| Delivery Period: | 3~5 Days |
| Payment Method: | T/T |
| Supply Capacity: | 100 pcs per month |

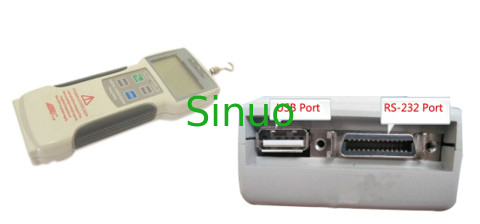

Push and Pull Dynamometer
Standards:
This device is required by IEC 60335-1 & IEC 60884-1 and etc.
Feature:
1. High precision and high resolution;
2. Five test modes, three display modes to choose from - to maximize test efficiency;
3. kg (kg), lb (list), N (Newton) three measurement units are available for selection and mutual conversion;
4. Gravity acceleration value setting function---The user can input the exact value of gravity acceleration of the place of use. Make testing and unit conversion more accurate;
5. Peak hold function, keep the peak display until manually cleared;
6. Automatic peak function, keep the display peak automatically after 2 seconds;
7. The upper and lower limits and the comparison value can be set for statistical analysis, and the buzzer alarm when the comparison value is exceeded;
8. Data storage function, can store 128 test values;
9. Data output function, the data can be input into the computer through the data line to do various analysis;
10. Green and environmental protection, 10 minutes, no operation, automatic shutdown;
11. High-quality charging power supply, charging voltage from 100V to 240V available, can adapt to most areas. There are also short circuit, leakage, overload protection functions;
12. 2 sets of installation dimensions, adapt to most test machines, convenient for users to install on the machine;
13. The unique switch contact on-off force test function makes the switch on-off force test more accurate;
14. 6-bit large screen display;
15. Use nickel-metal hydride rechargeable battery.
Technical Parameters:
| Mode | Capacity | Display | Resolution |
| ZP-2 (Optional) | 2N | 2.000N | 0.001N |
| ZP-5 (Optional) | 5N | 5.000N | 0.001N |
| ZP-20 (Optional) | 20N | 20.00N | 0.01N |
| ZP-50 (Optional) | 50N | 50.00N | 0.01N |
| ZP-100 | 100N | 100.00N | 0.01N |
| ZP-200 (Optional) | 200N | 200.0N | 0.1N |
| ZP-300 (Optional) | 200N | 300.0N | 0.1N |
| ZP-500 (Optional) | 500N | 500.0N | 0.1N |
| ZP-1000 (Optional) | 1000N | 1000N | 1N |
|
|
