IEC 62368-1 Figure V.1 Stainless Steel Straight Unjoint Test Probe
Product overview:
The unjoint test probe of figure V.1 conforms to the requirements of IEC 62368-1:2018 clause V.1.3 and figure V.1 (but straight unjointed version), etc.
It is used for determination of the equipment not likely to be accessible to children.
There is a M6 thread on the end of the handle, through where the test probe can be connected with a force gauge to achieve required force if necessary.
Technical parameters:
The dimensions, shapes and material are referred to IEC 62368-1:2018 figure V.1 (but straight unjointed version):
| Probe material | Stainless steel |
| Handle material | Nylon |
| Applied force | Without built-in force, should work with a force gauge |
| Applied standards | IEC 62368-1:2018 clause V.1.3, figure V.1 (but straight unjointed version) |
Test procedures and operation:
Please refer to the relevant standards.
Take IEC 62368-1:2018 clause V.1.3 as an example:
Openings preventing access to a part by the applicable jointed test probe of Figure V.1. or Figure V.2 are further tested by means of a straight unjointed version of the respective test probe applied with a force of 30 N. If the unjointed probe enters the openings, test method 1 is repeated, except that the applicable jointed version of the test probe is pushed through the opening using any necessary force up to 30 N.
The test probe should work together with a force gauge to achieve the required force, please insert the force gauge connector into the M6 thread hole on the end of the handle.

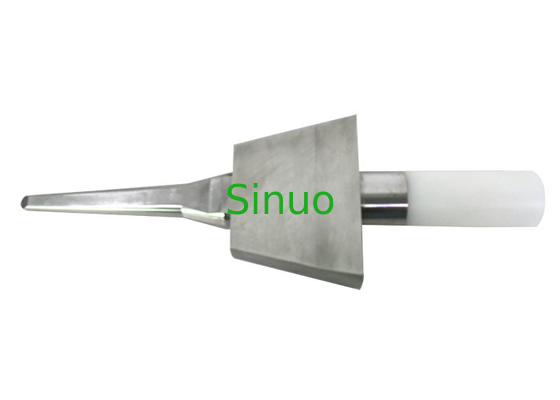

shown as following reference photo:
Notice:
1. Please do not damage the appliance shape (such as scratching, bending, etc.).
2. Prevented from dust and moisture environment, in order to avoid the oxidation to affect the dimensional accuracy.
Packing list:
| Item | Name | Quantity | Unit | Remark |
| Main item | IEC 62368-1 Figure V.1 Stainless Steel Straight Unjoint Test Probe | 1 | PC | |
Document
| User manual | 1 | Copy | |
| Certificate of quality | 1 | Copy | ||
| Warranty card | 1 | Copy |
