IEC60669 House Hold Switches Low Energy Pendulum Impact Test Apparatus

IEC60669 House Hold Switches Low Energy Pendulum Impact Test Apparatus

MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 30 Days
Payment Method: L/C, , T/T, Western Union, MoneyGram
Supply Capacity: 20 sets per month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN2122A
Applied Standards:
IEC60068, IEC60884,, IEC60669 And Etc.
Pendulum Outer Dia.:
9 Mm
Impact Point:
Adjustable
Fall Height:
0-500mm
Bracket Material:
Stainless Steel
Mounted Type:
Wall Mounted
Brand:
Sinuo
Equivalent Mass:
2N
Minimum Order Quantity:
1
Price:
Customized
Packaging Details:
Plywood
Delivery Time:
30 Days
Payment Terms:
L/C, , T/T, Western Union, MoneyGram
Supply Ability:
20 sets per month
High Light:

Pendulum Impact Test Apparatus

,

IEC60669 Impact Test Apparatus

Product Description



IEC60669 House Hold Switches Low Energy Pendulum Impact Test Apparatus



Standards & Clauses:


IEC60068-2-75:1997

IEC60884-1:2006clause 24.1 and figure22-26

IEC60598-1:2014

IEC60669-1:2007clause 20.1

IEC62262:2002





Technical Parameters:


Energy/J 0.14, 0.2, 0.35, 0.5, 0.7, 1.0
Equivalent Mass
kg
150g±1g (200g),200g±1g (250g) optional
Pendulum Tube Length 1000mm,outer diameter 9 mm, wall thickness 0.5 mm steel pipe
Impact Point With the adjustable range of sample mounting bracket
Height of Fall 0-500mm, scale display
Striking Element Fix and Release Fixed by mechanical latch, released by spring device
Mounting Brackets Weight:10±1 kg, the structure is firmness,X, Y axis are adjustable, can rotate ±90° around the rotation axis of mounting plate


Table 1 Striking element characteristics



Energy / J ≤1
±10%
2
±5%
5
±5%
10
±5%
20
±5%
50
±5%
Equivalent Mass ±2%kg 0.25(0.2) 0.5 1.7 5 5 10
Material Nylon Steel
R/mm 10 25 25 50 50 50
D/mm 18.5(20) 35 60 80 100 125
f/mm 6.2(10) 7 10 20 20 25
r/mm - - 6 - 10 17
l/mm Adjusted according to the equivalent mass, see Appendix A


Table 2 Height of Fall



Energy /J 0.14 0.2 (0.3) 0.35 (0.4) 0.5 0.7 1 2 5 10 20 50
Equivalent Mass /kg 0.25 (0.2) 0.25 (0.2) 0.25 (0.2) (0.2) 0.25 0.25 0.25 0.5 1.7 5 5 10
Height of Fall ±1%mm 56 (100) 80 (150) 140 (200) (250) 200 280 400 400 300 200 400 500
Note 1, see note 3.2.2; Note 2, the energy unit of this part of the joule (J) is derived from the standard gravity acceleration (g), the whole value of g round: 10m / s2.


Table 3 Relationship of IK code and corresponding energy



IK Code IK00 IK01 IK02 IK03 IK04 IK05 IK06 IK07 IK08 IK09 IK10
Energy / J a 0.14 0.2 0.35 0.5 0.7 1 2 5 10 20
Note 1. If higher impact energy is required, the recommended value is 50J.
Note 2: Some other standards use a single digit to indicate the specified impact energy. To avoid mixing with it, the feature number is represented by two digits.
a. Unprotected according to this standard


Samples and Restrictions:

Household and similar electronic and electrical products and their accessories such as plugs and sockets and wall mounted mounting boxes, screw glands, covers, switches, luminaries, etc.

Application:

It is used for the impact resistance test of household and similar electronic and electrical products and their accessories such as plugs and sockets and wall mounted mounting boxes, screw glands, covers, switches, lamps, etc., to assess the safety performance and strength level of the products.


Test Principle:

Test Eha:Pendulum Hammer, the striking element is free released at a certain height through a 1 m pendulum tube,impact the specimen at the lowest point in the vertical direction, after the conversion of gravitational potential energy to kinetic energy, to achieve the purpose of impact test on the sample.

Structure:

The low energy pendulum impact test device is mounted to the wall, the sample mounting bracket is adjustable up, down, left and right, and the angle can be adjusted by pivot, thereby achieving impacts on different positions on the front side and impacts on side of the sample.

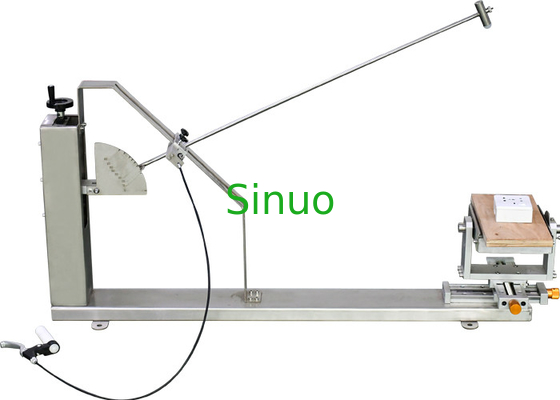

IEC60669 House Hold Switches Low Energy Pendulum Impact Test Apparatus 0

IEC60669 House Hold Switches Low Energy Pendulum Impact Test Apparatus 1

IEC60669 House Hold Switches Low Energy Pendulum Impact Test Apparatus 2
