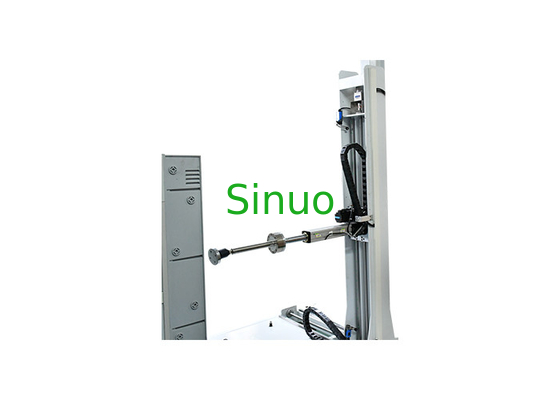

IEC 61439 Low Voltage Switchgear And Controlgear Assemblies Static Load Test Bench

IEC 61439 Low Voltage Switchgear And Controlgear Assemblies Static Load Test Bench
IEC 61439 Low Voltage Switchgear And Controlgear Assemblies Static Load Test Bench IEC 61439 Low Voltage Switchgear And Controlgear Assemblies Static Load Test Bench IEC 61439 Low Voltage Switchgear And Controlgear Assemblies Static Load Test Bench IEC 61439 Low Voltage Switchgear And Controlgear Assemblies Static Load Test Bench

Large Image :  IEC 61439 Low Voltage Switchgear And Controlgear Assemblies Static Load Test Bench

Product Details:
Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN7714
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Customized
Packaging Details: Plywood
Delivery Time: 10 Days
Payment Terms: L/C, , T/T, Western Union, MoneyGram
Supply Ability: 100 pcs per month
Detailed Product Description
Test Standard: IEC 61439, IEC 61587 And Etc. Loading Direction: Horizontal 2, Vertical 1
Movable Range: 3 To 8 Degrees Of Freedom Loading Way: Electric
Scope Of Application Of A Force: 0-20KN Applying Speed: 0.1-50 Mm/s
Brand: Sinuo Warranty: 1 Year
High Light:

Controlgear Assemblies Static Load Test Bench

,

IEC 61439 Static Load Test Bench

,

Switchgear Static Load Test Bench



IEC 61439 Low-Voltage Switchgear And Controlgear Assemblies Static Load Test Bench



Standards & Clauses:

IEC 61439-5:2014 Low-voltage switchgear and controlgear assemblies - Part 5: Assemblies for power distribution in public networks

IEC 61587-1:2007 Mechanical structures for electronic equipment - Tests for IEC 60917 and IEC 60297 series - Part 1: Environmental requirements, test set-up and safety aspects for cabinets, racks, subracks and chassis under indoor condition use and transportation

IEC 62208:2011 Empty enclosures for low-voltage switchgear and controlgear assemblies - General requirements

IEC 62271-202:2014 High-voltage switchgear and controlgear - Part 202: High-voltage/ low-voltage prefabricated substation



Technical Parameters:

1 Loading direction Horizontal 2, vertical 1
2 Movable range 3 to 8 degrees of freedom
3 Loading way electric
4 Scope of application of a force 0-20KN
5 Applying speed 0.1-50 mm/s
6 The power supply 220V/50Hz



Product Overview

Static load test bench is mainly used for mechanical loading test and related scientific research test of low-voltage meter box, pre-installed substation, electrical equipment shell. It is convenient for mechanical performance test of metal meter box, non-metal meter box, cable branch box and other multi-specification meter box.

The machine adopts frame structure, which is divided into horizontal loading part and vertical loading part. Each loading actuator can move freely in the plane with 3 degrees of freedom. A total of 8 dof mobile loading was achieved by three actuators.

Practical structure: the device adopts the whole frame structure, firm and reliable.

IEC 61439 Low Voltage Switchgear And Controlgear Assemblies Static Load Test Bench 0IEC 61439 Low Voltage Switchgear And Controlgear Assemblies Static Load Test Bench 1
