| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | Standard Exporting Boxed |
| Delivery Period: | 15 Days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 60 Sets Per Month |

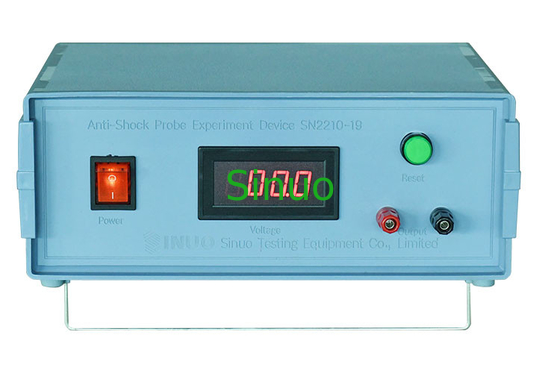

IEC 60884-1 Clause 10.1 Anti-Shock Probe Experiment Device
Product Information:
This equipment meets the requirements of IEC 60884-1: 2013 Clause 10.1, IEC 60669-1: 2017 Clause 10.1, and etc.
It is used with the testing probe for the convenience and correctness. In the two output electrodes, the low potential (the red one) is connected with the energized part of the electrical appliance and the high potential is connected with the input terminal of the probe used. At this time, conduct the circuit and push the button of start. Then use the probe to touch the parts that maybe electrified. If the alarm of the equipment sounds, it is proved that the testing part is electrified. Then push the button of reset and cut down the circuit.
Technical Parameters:
| Applied standard | IEC 60884-1 |
| Applied clause | 10.1 |
| Working voltage | AC 220V±10%, 50HZ±1% |
| Electrode output the testing voltage | AC40-50V |
| Working temperature | 0-40 |
| Relative humidity: | ≤80% |
| Environment | No shaking and no corrosive gas |
