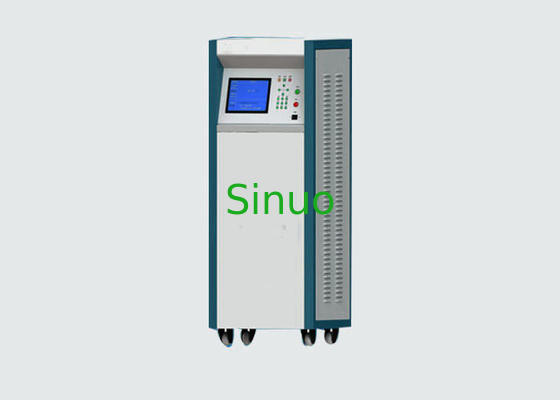

IEC 60884-1 Clause 11.5 Multitester Electrical Safety Tester
Product information:
This multitester electrical safety tester Conforms to IEC 60884-1:2013 clause 11.5, 17.1, 17.2, IEC 60669-1 clause 11.4, clause 16, IEC 60950:2013 clause 2.6.3.4, 5.2 and 6.2.2.3, IEC 60335-1 Clause 10, 13, Clause 16, Clause 27 and etc. It integrates 6 functions of hi-pot, insulation, grounding, leakage, power, low-voltage start testing.
Features:
■ Meet CCC, IEC, EN, VDE, BS, GS, UL and other electrical safety standards
■ Unlimited storage of test conditions and test results
■ Data can be copied via USB
■ Fast speed: ARM high-speed processor is used as the control core of the test instrument, and data processing is comprehensive and fast
■ High accuracy: safety test accuracy up to 1.5%
■ Ramp rise and down of voltage withstand can be set, and with upper and lower limit alarm function
■ Digital closed-loop feedback control mode, fully automatic voltage regulation mode, output voltage / current is automatically corrected, and it is not affected by external power grid fluctuations to ensure the accuracy of the test
■Two judgment modes can be chosen for ground resistance test: voltage and resistance, to meet the requirements of different national / industry standards
■ Built-in one human body network fora leakage current test, which can be customized to any human body network-optional function
Technical parameters:
| Applied standard | IEC 60884-1 |
| Applied clause | 11.5 |
| AC withstand voltage | |
| Output voltage setting range | AC 200～5000V |
| Output voltage accuracy |
±(1.5%×setting+5words) |
| Output voltage setting step |
1V |
|
Output frequency |
50/60Hz |
|
Output waveform |
Sine wave |
| Distortion of output waveform | Less than 2% (at purely resistive load) |
|
Output waveform adjustment rate |
Less than (2%* setting +5V) |
| Output capacity |
500VA |
|
Output voltage ramp-down time setting range |
0~300s |
| Set step |
0.1s |
| Breakdown current measurement range | 0.10～99.99mA |
|
Breakdown current test accuracy |
±(1.5%×reading+5words) |
| Breakdown current preset upper limit | 0.10～99.99mA |
| Breakdown current preset lower limit |
0.00～5.00mA |
|
Breakdown current preset step |
0.01mA/step |
|
Test time setting range |
1~300s |
|
Test time setting step |
1s/step |
| Arc detection |
1～9 Level (level 9 is the highest sensitivity) |
| Insulation resistance | |
| Output voltage setting range | DC 200~1000V |
| Output voltage accuracy | ± (1.5%×reading+5 words) |
| Output voltage setting step |
1V |
| Output capacity | 60VA |
| Output voltage ramp-down time setting range | 0~300s |
|
Set step |
0.1s |
|
Insulation resistance measurement range / accuracy |
1~2000 MΩ ≤100 MΩ: ±(5%×displaying+3words) >100 MΩ: ±(8%×displaying+8words) |
| Insulation resistance alarm setting range |
Upper limit: 0 ～ 2000MΩ; lower limit: 1 ～ 2000MΩ |
| Test time range, resolution | 1～300s 1s/step |
| Ground resistance | |
| Ground current output range / accuracy |
AC 5.0～30.0A |
| Ground current accuracy |
±(1.5%×setting+0.2A) |
| Ground resistance measurement range |
10.0～600mΩ |
| Ground resistance measurement accuracy | ±(1.5%×displaying+3mΩ) |
| Ground resistance alarm setting range | Upper limit: 5～10A:10.0～600mΩ；11～25A:10.0～300mΩ；26～30A:10.0～200mΩ；lower limit:0.0～100mΩ |
|
Ground resistance setting step |
1mΩ |
|
Test time range |
1~300s |
| Test time step | 1s/step |
| Leakage current | |
|
The output voltage |
1.06 times rated voltage provided by the built-in variable frequency power supply |
| Leak type setting |
Dynamic leakage, static leakage, built-in one leakage current human body network, any human body network can be customized |
| Output voltage measurement range | AC 50～280V |
| Output voltage frequency |
AC 45～65Hz |
| Output voltage accuracy | ±(0.5%×displaying+2words) |
| Leakage current measurement range |
0.05～20.00mA |
|
Leakage current measurement accuracy |
± (1.5%× displaying +10uA) |
| Leakage current setting alarm range |
Upper limit: 0.05 ～ 20.00mA; lower limit: 0.01 ～ 5.00mA |
| Leakage current setting step |
0.01mA |
| Test time range |
1～300s 1s/step |
| Power | |
|
Output voltage |
1.0 times rated voltage, provided by built-in variable frequency power supply |
|
Output voltage measurement range / accuracy |
AC 50～280V ±(0.5%×displaying+2 words) |
| Output current measurement range / accuracy |
AC 0.20～30.00A ±(0.5%× displaying +2 words ) |
|
Active power measurement range / accuracy |
30～6000W ±(0.5%× displaying +5 words )
|
| Power setting alarm range | Upper limit: 3 ～ 6000W , Lower limit: 0 ～ 6000W |
| Test time range / resolution | 1～300s 1s/step |
| Low voltage start | |
| Output voltage | 0.85 times rated voltage provided by the built-in variable frequency power supply |
| Output voltage measurement range / accuracy |
AC 50～280V ±(0.5%× displaying +2words) |
|
Starting current measurement range / accuracy |
AC 0.20～30.00A ±(0.5%× displaying +2 words ) |
| Current setting alarm range | Upper limit:0.20～30.00A Lower limit: 0.00～25.00A |
| Test time range |
1～300s 1s/step |
|
Communication |
232 485 can Bu |
| Interface | s TCP / IP interface |
| External control method |
PLC interface, switch signal |
|
System appearance |
Size:600W*1840H*600Dmm Height with pulley, alarm light |
| System standard accessories | Power cord × 1, foot switch × 1, 30A test clamp × 1, test box × 1, power input line × 1, fuse tube × 1 |
