IEC 60998-2-2 Terminal Mechanical Stress Test Apparatus

Basic Properties
Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SNQC11012
Trading Properties
Minimum Order Quantity: 1
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 20 Sets Per Month
Tags

switch endurance tester

Switch tester

plug socket tester
Specifications
Standard: IEC 60998-2-2 Test station: Single Station
Speed of work: 10±2 Revolutions/min Rotation diameter: 75mm
Load weight: 0.4-70.3Kg Height distance: 260-660mm, Adjustable
High Light:

Terminal Mechanical Stress Test Apparatus

,

IEC 60998-2-2 Stress Test Apparatus

,

660mm Adjustable Mechanical Stress Test Apparatus
Product Description

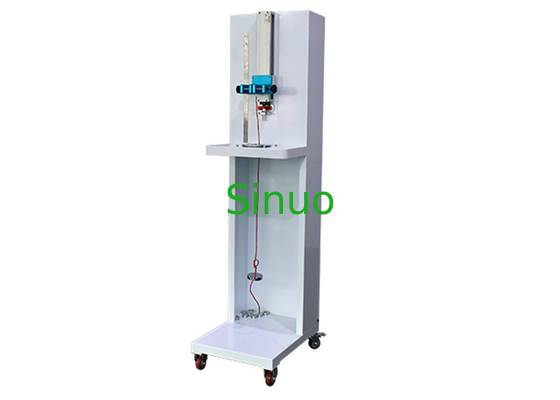

IEC 60998-2-2 Terminal Mechanical Stress Test Apparatus



Product Information:

The Terminal Mechanical Stress Test Apparatus is designed and manufactured according to the standard requirements of IEC 60998-2-2, IEC 60084 figure 1, IEC884 figure 11, and etc.

The test apparatus is used to examine whether screw-type terminals and screwless terminals can withstand the mechanical stress that occurs during normal use. It is mainly used to judge whether the design and structure of the screw-clamping terminal have reached the requirement of not excessively damaging the wire when the wire is clamped.



Technical Parameters:

Standard IEC 60998-2-2
Voltage 220V(AC)50Hz
Test station Single station
Speed of work 10±2 revolutions/min
Rotation diameter 75mm
Test times 1-999999 times
Load weight 0.4-70.3Kg
Height distance 260-660mm, adjustable
Wire sleeve diameter

6.5mm,9.5mm,13mm,14.5mm,15.9mm,19.1mm,22.2mm,25.4mm,

28.6mm,31.8mm,38.1mm,44.5mm





IEC 60998-2-2 Terminal Mechanical Stress Test Apparatus
