IEC60669-1 Simplex Bit Plugs Sockets Electrical Switch Life Tester

IEC60669-1 Simplex Bit Plugs Sockets Electrical Switch Life Tester

MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 30 Days
Payment Method: L/C, , T/T, Western Union, MoneyGram
Supply Capacity: 20 sets per month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN2116G
Control Method:
Mitsubishi PLC
Display Mode:
7" Touch Screen
Linear Stroke:
0-100mm
Applied Standard:
IEC 60669-1, IEC 60884-1
Test Station:
1 Synchronous Stations
Test Specimen:
Linear Plugs, Sockets, Switches
Minimum Order Quantity:
1
Price:
Customized
Packaging Details:
Plywood
Delivery Time:
30 Days
Payment Terms:
L/C, , T/T, Western Union, MoneyGram
Supply Ability:
20 sets per month
High Light:

Electrical Switch Life Tester

,

Plugs Sockets Switch Life Tester

,

IEC 60669-1 Switch Life Tester

Product Description



IEC60669-1 Simplex Bit Plugs Sockets Electrical Switch Life Tester





Standards:

IEC60884-1:2006clause 20 and 21

IEC61058-1:2008clause 17

IEC60669-1:2007clause 18 and 19

IEC60320-1:2007clause 19 and 20



Product overview:

This equipment for household and similar use fixed device of the electrical switches, plug sockets, coupler for on-off capability, breaking capacity and the normal operation life test, examination of the switch and plug socket whether can stand in the normal use of mechanical damage and electrical fatigue damage, and presence of contact adhesion phenomenon occurring or make or break phenomenon for a long time, Inspect for excessive wear and other harmful effects.The workstation can be customized.
This equipment uses servo motor drive mechanism, to do straight press, toggle, rotation and other repeated actions on the sample, at the same time with the load on and off test. The on-off time, test speed, stroke and Angle can be preset through the touch screen.
This equipment adopts integral frame, driven by servo motor, precision ball screw and synchronous belt drive, 7 inch color touch screen operation humanization and powerful digital display function, PLC intelligent control system; At the same time, the three-axis adjustable fixture is suitable for button, toggle, stilt and rotary switch and plug and socket life test.



Technical Parameters:

No. Item Parameters
1 Power 220V±10V, 50Hz (or match client's local power supply requirements)
2 Station 3 synchronous stations
3 Operation interface 7-inch color LCD touch screen
4 Drive mode servo motor + ball screw
5 Control system PLC control system
6 Test times 0~999999 times, can be preset
7 Conduction time 0~99.9s, can be preset
8 Close time 0~99.9s,can be preset
9 Test stroke Linear: 0~100mm, can be preset
10 Test speed Linear: 0~200mm/s,can be preset
11 Atmospheric pressure 80~106kpa
12 Ambient temperature 5~40°C
13 Relative humidity (20~90)%RH
14 Use environment Requires no violent shaking, no vibration, no electromagnetic interference, no dust, no explosive, no corrosive gases, needs good heat dissipation place
15 Dimensions and weight L*W*H=960*730*600mm,160kg

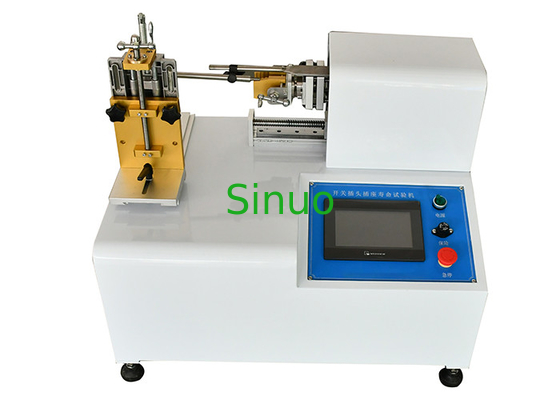

IEC60669-1 Simplex Bit Plugs Sockets Electrical Switch Life Tester 0

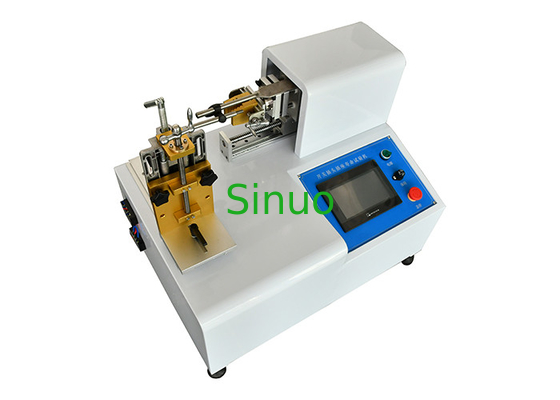

IEC60669-1 Simplex Bit Plugs Sockets Electrical Switch Life Tester 1
