| MOQ: | 1 |
| Price: | Customized |
| Standard Packaging: | Plywood |
| Delivery Period: | 30 Days |
| Payment Method: | L/C, , T/T, Western Union, MoneyGram |
| Supply Capacity: | 20 sets per month |

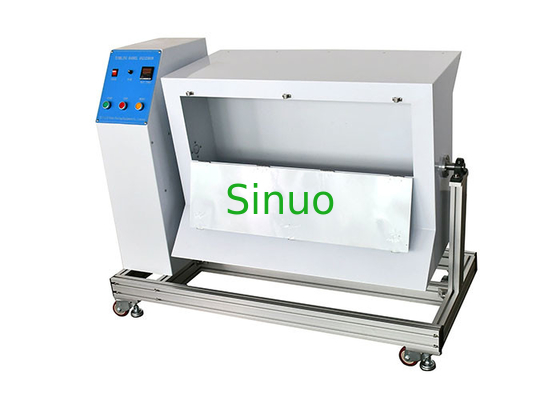

IEC60068-2 Tumbling Barrel Free Fall Test Apparatus button control
Standards & Clauses:
IEC60884-1:2006
IEC60068-2-32:2006
IEC60598-1:2014
IEC60320-1:2007clause 23.2
DIN VDE 0620-1:2010
BS1363-1-2012<13A plugs,socket-outlets,adaptors and connection units Part1:Specification for rewirable and non-rewirable 13A fused plugs>
Product Overview:
This equipment uses the motor to drive the drum to do rotation movement, the sample to the specified height repeatedly dropped to the specified surface.
Suitable for sag verification of lamps installed with plug sockets, non-removable connectors and plug type ballasts/transformers and power sockets.
Mainly used for plug sockets, plug type ballast/transformer and power socket installation lamps, non-removable connectors.
Structure:
The test equipment consists of electric control cabinet and tumbling barrel. The test times can preset, and the test will be stopped automatically after the preset test times are completed.
Equipment dimensions: about: 800 × 800 × 1100 (mm) W × D × H
Equipment weight: 100kg
Technical Parameters:
| Model | SN2123 | SN2123B | SN2123C |
| Test Station |
Single station, double stations can be customized
|
||
| Electrical Control Method | Button control | Button control | Button control |
| Drive Mode | Motor | Motor | Motor |
| Tumbling Barrel Material | The side are 1.5mm high-quality steel plates, the upper and lower 3mm steel plates are placed on the 10-19mm wooden boards, the inclined sliding surface is the plastic laminated board, with triangular rubber pad. | 3mm high quality steel plate | The front and back are transparent plastic plates, and the upper ,lower and sides are 10~19mm thick plywood plates |
| Rotation Speed | 5rpm | 5rpm | 5rpm |
| Fall Speed | 10 times/ min | 10 times/ min | 10 times/ min |
| Test Times | 0~9999 times, can be preset | 0~9999 times, can be preset | 0~9999 times, can be preset |
| Drop Height | 500mm, can be customized | 500mm, can be customized | 500mm, can be customized |
| Main Specimen | Plugs and sockets and similar electrical accessories | Plug-in ballast/transformer and power socket mounted luminaire | British standard plug and socket |
| Standards Compliant |
IEC60068-2-32, IEC60884.1, EN50075 GB2009.1-2008, GB2423.8 |
IEC60598-1, VDE0620-1 figure 27 GB7000.1figure 25, |
BS1363.1 figure 20, UL60730 |
