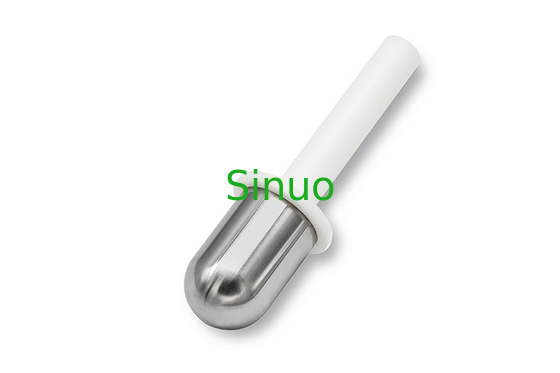

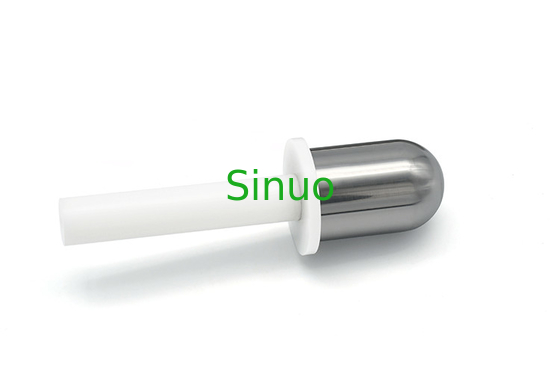

φ40 Mm Cylinder Rod Test Probe With Hemispherical End IEC60335-2-14

φ40 Mm Cylinder Rod Test Probe With Hemispherical End IEC60335-2-14

MOQ: 1
Price: Customized
Standard Packaging: Carton Box
Delivery Period: 3 Days
Payment Method: L/C, T/T, Western Union, MoneyGram
Supply Capacity: 100 Sets Per Month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN2210-25
Rod Diameter:
φ40 Mm
Rod Material:
Stainless Steel
Rod End Shape:
Hemispherical
Handle Material:
Nylon
Handle Length:
100 Mm
Applied Standard:
IEC60335-2-14
Applied Clause:
Clause 20.103
Test Sample:
Hand-held Blender
Minimum Order Quantity:
1
Price:
Customized
Packaging Details:
Carton Box
Delivery Time:
3 Days
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Supply Ability:
100 Sets Per Month
High Light:

40Mm Cylinder Rod Test Probe

,

IEC 60335-2-14 Cylinder Rod Test Probe

,

Hemispherical End Rod Test Probe

Product Description



IEC60335-2-14 Hand-held blenders φ40 mm Cylinder Rod Test Probe



Standard and Application:

The φ40mm cylinder rod meets the standard requirements of IEC 60335-2-14 Clause 20.103.

It is used to verify the hand-held blenders other than hand-held food mixers provided with a blender attachment shall incorporate a biased-off switch, its actuating member being positioned in a recess or otherwise guarded to prevent accidental operation.



Technical Parameters:



Probe diameter Φ40mm
Probe end shape Hemispherical
Probe material Stainless steel
Handle Nylon



Test Procedures and Operation:

Please refer to the relevant standards.

Take IEC 60335-2-14 Clause 20.103 as an example:

Compliance is checked by applying a cylindrical rod, having a diameter of 40 mm and a hemispherical end, to the actuating member of the switch. The test rod is applied with a foce not exceeding 5 N. The appliance shall not operate.



The test probe doesn’t have built-in force, if specific applied force required, the test probe should work together with a force gauge. At the end of our probe handle, there is a M6 thread hole to match the force gauge. Showing as following reference picture:

φ40 Mm Cylinder Rod Test Probe With Hemispherical End IEC60335-2-14 0
