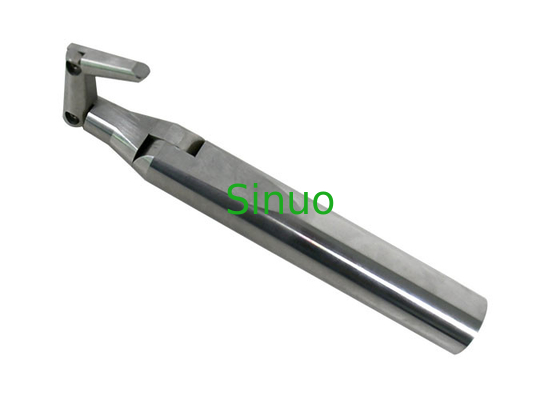

UL 496 Figure 1 Stainless Steel Articulate Probe With Force Gauge

UL 496 Figure 1 Stainless Steel Articulate Probe With Force Gauge

MOQ: 1
Price: Customized
Standard Packaging: Plastic Case
Delivery Period: 3 Days
Payment Method: L/C, , T/T, Western Union, MoneyGram
Supply Capacity: 50 sets per month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN2210-35B
Applied Standard:
UL 496
Applied Figure:
Figure 1
Applied Clause:
Clause 4.5.3.1
Probe Material:
Stainless Steel
Applied Force:
Should Work With Force Gauge
Package Type:
Plastic Case
Minimum Order Quantity:
1
Price:
Customized
Packaging Details:
Plastic Case
Delivery Time:
3 Days
Payment Terms:
L/C, , T/T, Western Union, MoneyGram
Supply Ability:
50 sets per month
High Light:

Stainless Steel Articulate Probe

,

Figure 1 Articulate Probe

,

UL 496 Switch Life Tester

Product Description



UL 496 Figure 1 Stainless Steel Articulate Probe



Product Overview:



This articulate probe conforms to UL 496 2013 clause 4.5.3.1, 4.10.2.2, 4.10.6.2.1 and table 2, figure 1.



Sinuo can offer various of test probes according to different standards requirements, our test probe with high accuracy, which can pass third party calibration. Here we share our our test probe lists as per IEC 60312 as following:



Item No.: Item Name & Model Brief Introduction
1

Test Probe A

SN2210-1

Conforms to Figure 1 as per IEC 61032

Sphere: Ф50 with white nylon handle and steel probe

2

Test Probe B

SN2210-2

Conforms to Figure 2 as per IEC 61032, IEC 60335-1 clause 8.1.1, 8.2, 22.1, 29.1, 29.2, IEC 60529 and etc.
3

Similar Test Probe B but Having a Circular Stop Face with Diam 50mm

SN2210-2A

Conforms to IEC 60335-1 clause 20.2.

Similar test probe B but having a circular stop face with diam 50mm

4

Test Probe C

SN2210-3

Conforms to figure 3 as per IEC 61032, IEC 60335-1 clause 22.1, IEC 60529 IP3 and etc.

RodФ2.5mm - length 100mm

5

Test Probe D

SN2210-4

Conforms to figure 4 as per IEC 61032, IEC 60335-1 clause 22.1, IEC 60529 IP4 and etc.

Wire: Ф1mm - length 100mm

6

Test Probe 1

SN2210-5

Conforms to figure 5 as per IEC 61032, IEC 60335-1 clause 22.1, IEC 60529 IP1 and etc.

Sphere: Ф50mm

7

Test Probe 2

SN2210-6

Conforms to figure 6 as per IEC 61032, IEC 60335-1 clause 22.1, IEC 60529 IP2 and etc.

Sphere: Ф12.5mm

8 Test Probe 11
SN2210-7

Conforms to IEC61032 figure 7 test probe 11, IEC 60335-1 clause 22.11, IEC 60065:2014 clause 9.1.7, IEC60065, IEC60598, etc.

Unjointed test finger with white nylon handle and stainless-steel pin

9 Rigid Finger Test Probe 11 SN2210-7T Conforms to test probe 11 as per IEC 61032 figure 7 with 0~75N force
10

Test Probe 12

SN2210-8

Conforms to test probe 11 as per IEC 61032 figure 8.

Cylinder pin: Ф4mm - length 50mm. White nylon handle and stainless-steel pin

11 Test Probe 13 SN2210-9

Conforms to test probe 13 as per IEC 61032 figure 9.

Conical pin: Ф3mm to Ф4mm – length 15mm with white nylon handle and stainless-steel pin

12

Test Probe 14

SN2210-10

Conforms to test probe 14 as per IEC 61032 figure 10.

Bar: 3mm×1mm with white nylon handle and stainless-steel pin

13

Test Probe 17

SN2210-11

Conforms to test probe 17 as per IEC 61032 figure 11.

Wire: Ф0.5mm, with white nylon handle and stainless-steel pin

14

Test Probe 18

SN2210-12

Conforms to test probe 18, IEC 61032 figure 12.

Small finger probe: Ф8.6mm - length 57.9mm

15

Test Probe 19

SN2210-13

Conforms to test probe 19, IEC 61032 figure 13.

Small finger probe: Ф5.6- length 44mm

16

Test Probe 31

SN2210-14

Conforms to test probe 31, IEC 61032 figure 14.

Cone: Ф110mm/60mm

17

Test Probe 32

SN2210-15

Conforms to test probe 32, IEC 61032 figure 15.

Rod: Ф25mm

18

Test Probe 41

SN2210-16

Conforms to test probe 41 as per IEC 61032 figure 16.

Probe: Ф30mm

19

Test Probe 43

SN2210-17

Conforms to test probe 43 as per IEC 61032 figure 17.

Bar: 50mm×5mm
