IEC 61032 Figure 17 Test Probe 43 For Testing Visibly Glowing Radiant Heaters
| Applied Standard: | IEC 61032 | Applied Figure: | Figure 17 |
| Rectangular Bar Thickness: | 5mm±0.05mm | Rectangular Bar Width: | 50mm±0.15mm |
| Rectangular Bar Length: | 80mm±0.2mm | Rectangular Bar Material: | Stainless Steel |
| High Light: | Figure 17 Test Probe,IEC 61032 Test Probe 43 |
||

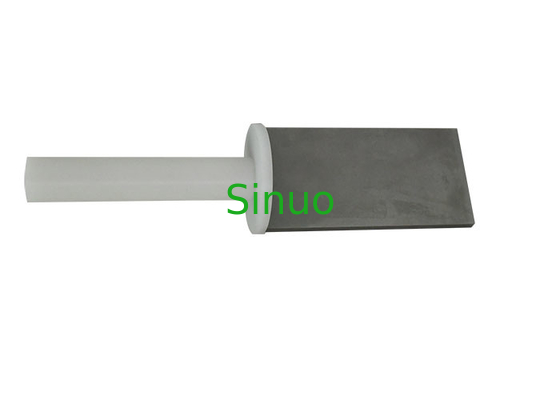

IEC 61032 Figure 17 Test Probe 43
Product Overview:
This probe conforms to the standard requirements of IEC 61032 test probe 43 figure 17, etc. This bar is intended to verify the protection of fixed and portable visibly glowing radiant heaters.
Probe Dimension and Material:
| Rectangular bar thickness (mm) | 5±0.05 |
| Rectangular bar width (mm) | 50±0.15 |
| Rectangular bar length (mm) | 80±0.2 |
| Rectangular bar material | Stainless steel |
| Handle material | Nylon |
Please refer to the relevant standards.
Please do not damage the appliance shape (such as scratching, bending, etc.).
Prevented from dust and moisture environment, in order to avoid the oxidation to affect the dimensional accuracy.
Sinuo can supply the full set of IEC 61032 test probes, and can manufacture various of test probes according other standards requirements, such as UL, VDE, BS, etc.
