|Applied Standard:||IEC 61032||Applied Figure:||Figure 18|
|Finger Probe Diameter:||Ф8.6mm||Finger Probe Length:||57.9mm|
|Probe Material:||Stainless Steel||Handle Material:||Nylon|
Figure 12 Test Probe 18,
IEC 61032 Test Probe

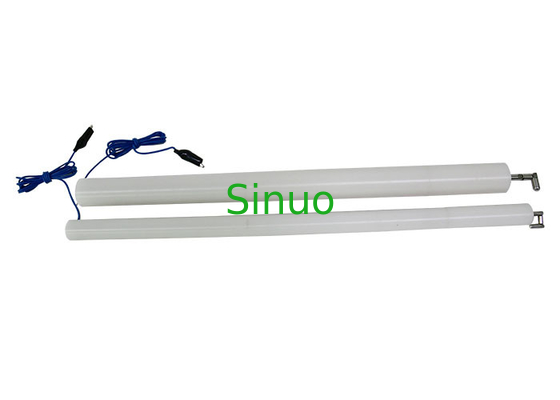

IEC 61032 Figure 12 Test Probe 18
This probe conforms to the standard requirements of IEC 61032 figure 12 test probe 18, IEC 60065:2014 clause 220.127.116.11, etc. This probe is intended to simulate access to hazardous parts by children of more than 36 months and less than 14 years.
|Hemispherical radius (mm)||R4.3±0.05|
|Finger probe diameter (mm)||Ф8.6±0.1|
|Finger probe length (mm)||57.9±0.15|
|Axes of joints distance (mm)||19.3|
|Collar diameter (mm)||Ф38.4±0.3|
|Collar length (mm)||101.6±0.3|
|Extension handle diameter (mm)||Ф38.1±0.3|
|Extension handle length (mm)||451.6±0.8|
|Finger probe material (mm)||Stainless steel|
|Collar and handle material (mm)||Nylon|
Please refer to the relevant standards.
Take IEC 60065:2014 clause 18.104.22.168 as an example:
The test is repeated using small finger probes according to test probes 18 and 19 of IEC 61032:1997. This does not apply if the intended conditions of use prevent the apparatus from being accessed by children.
For verifying whether the LIVE PARTS touched, the probe is equipped with amphenol connector, recommended to work with our anti-shock probe experiment device or a 40~50V voltage indicator. Showing as following reference picture:
