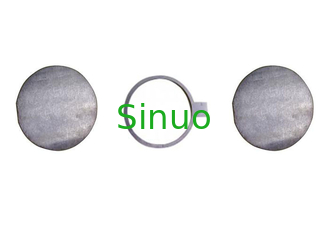

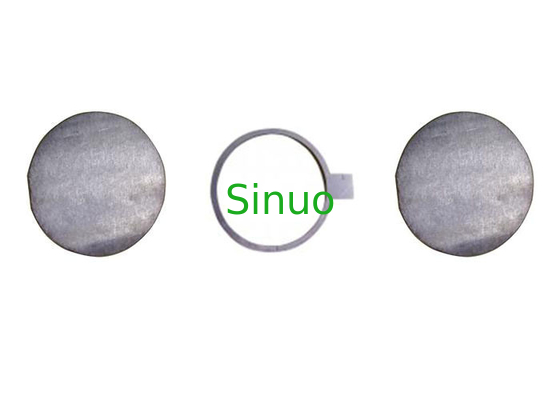

IEC 62368-1 2018 Steel Disc Aluminum Ring Aluminum Foil
| Applied Standard: | IEC 62368-1 | Applied Clause: | Clause 9.6.2 |
| Figure of Steel Disc: | Figure 47 | Figure of Aluminum Ring: | Figure 48 |
| Figure of Aluminum Foil: | Figure 49 | Application: | Test Wireless Power Transmitter |
| High Light: | Clause 9.6.2 Aluminum Foil,IEC 62368-1 Aluminum Ring,Figure 47 Aluminum Ring |
||
IEC 62368-1:2018 Steel Disc Aluminum Ring Aluminum Foil
Product Overview:
The steel disc conforms to IEC 62368-1:2018 clause 9.6.2 and figure 47.
The aluminum ring conforms to IEC 62368-1:2018 clause 9.6.2 and figure 48.
The aluminum foil conforms to IEC 62368-1:2018 clause 9.6.2 and figure 49.
They are the accessories (foreign objects) for testing wireless power transmitter.
