| MOQ: | 1SET |
| Price: | Negotiable |
| Standard Packaging: | plywood |
| Delivery Period: | 15days |
| Payment Method: | L/C, T/T, D/A, D/P |
| Supply Capacity: | 30sets per month |
IEC60884 Switch Life Tester Stainless Steel 15A Low-Temperature Test Chamber For Electrical Accessories
Standard:IEC60884,IEC60811-1-4 , common test methods for insulating and sheathing materials of electric and optical cables-part 1-4:Methods for general application-Test at low temperature and etc.
Application:Suitable for low temperature test of products such as electric wire and cable, electrical accessories, etc..
Test sample:Wire and cable.
Feature:The low temperature test chamber mainly provides the low temperature environment of (0℃—-40℃) , to open the seal cover plate on the low temperature chamber, can clearly see the inside of the low temperature chamber through the transparent organic glass, mainly for proceeding variety of low temperature test.
1. The test system architecture design is advanced and reasonable, the manufacturing process is standardized, and the appearance is beautiful and generous.
2. The main function components are world famous brand ones, the technology principle is Advanced and reliable technology principle, and the noise and energy are all best controlled.
3. Supporting parts and assembly are good matched, the safety and reliability are best, to ensure that the requirements of the user for a long time, high-frequency using.
4. The device has a good operability, maintainability, good temperature stability and durability, good safety performance, do not pollute the environment and endanger human health.
Parameters:
1. Inner test chamber size: L600 × H500 × W500mm
2. Outer chamber size: L1700 × H950 × W850mm
3. Inner chamber material: stainless steel plate(SUS#304)
4. Outer chamber material: stainless steel plate(SUS#304)
5. Heat preservation material: low temperature tank: high density PU foam
6. Total power: 3.5KW
7. Supply voltage: AC220V 50HZ or match client's local power supply requirements
8. Working current: 15A
9. Temperature range: room temperature～-40℃
10. Cooling time: room temperature～-40℃ about 45 minutes
11. Weight: about 200KG
| Item | Parameter |
| Inner test chamber size | L600 × H500 × W500mm(can be customized ) |
| Standard | IEC60884,IEC608112 and etc |
| Voltage | AC220V 50HZ(can be customized ) |
| Power | 3.5KW |
| Outer chamber size: | L1700 × H950 × W850mm(can be customized ) |
| Inner chamber material | SUS#304 |
| Outer chamber material | SUS#304 |
| Working current | 15A |
| Temperature range | RT～-40℃ |
| Cooling time | RT～-40℃ about 45 minutes |
| Weight |
200KG |
| Application | Electrical Accessories,cable ,Lamps and etc. |

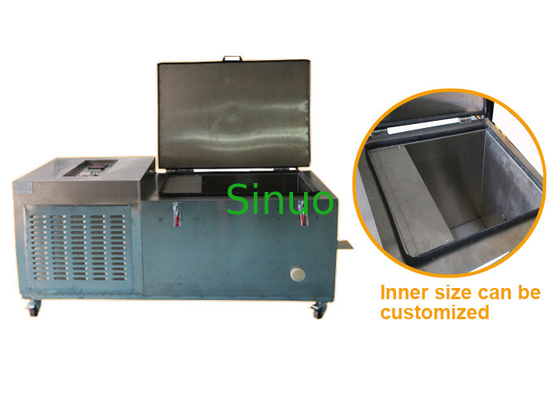

Picture for reference:
