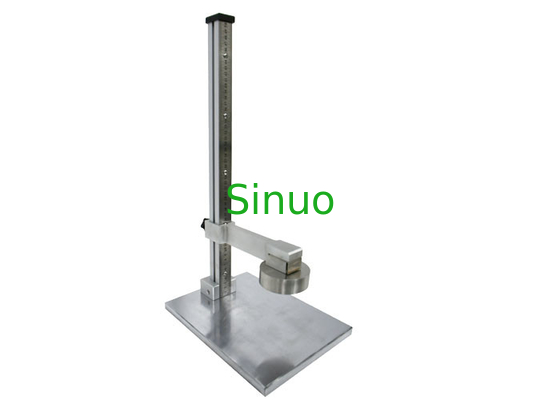

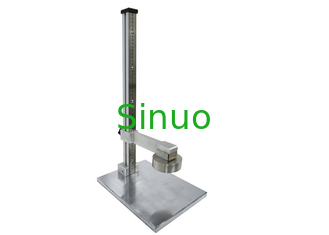

100mm Drop Tester EN 71-1 Toys 1KG Impact Strength Test Apparatus
  • name
  • name
  • name
  • name

100mm Drop Tester EN 71-1 Toys 1KG Impact Strength Test Apparatus

MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 10 Days
Payment Method: L/C, , T/T, Western Union, MoneyGram
Supply Capacity: 100 sets per month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN2401
Applied Standard:
EN 71-1-1988
Applied Clause:
Clause 4.14
Horizontal Steel Surface Size:
215 (length) X280 (width)
Adjustable Drop Height:
0-500mm
Metallic Mass Weight:
1kg ± 0.02kg
Metallic Mass Diameter:
80mm ± 2mm
Highlight:

1KG Metallic Mass Impact Strength Tester

,

Clause 4.14 Impact Strength Test Equipment

Product Description



EN 71-1 100mm Drop Tester Toys Impact Strength Test Apparatus with 1KG Metallic Mass



Product information:



The drop tester conforms to EN 71-1-1988 clause 4.14, EN 71-1-1998 clause 8.7. Adopts impact strength test methods to simulate a child playing or abusing toys or other items to determine the possibility of injury.



Technical Parameters:



Horizontal steel surface size 215 (length) x280 (width)
Adjustable drop height 0-500mm
Impact metallic mass 1kg ± 0.02kg weight, diameter:80mm ± 2mm
Impact distributed area Distributed over an area of 50cm²
Frame material

Steel with chrome-plated surface


Operation steps:



Please refer to the relevant standards.

Take EN 71-1-1988 clause 4.14 as an example:

Place the toy on a plane, horizontal steel surface and drop a metallic mass of 1 kg, distributed over an area of 50 cm², through a distance of 100mm on to the toy.

Examine whether the casing has broken.

100mm Drop Tester EN 71-1 Toys 1KG Impact Strength Test Apparatus 0
