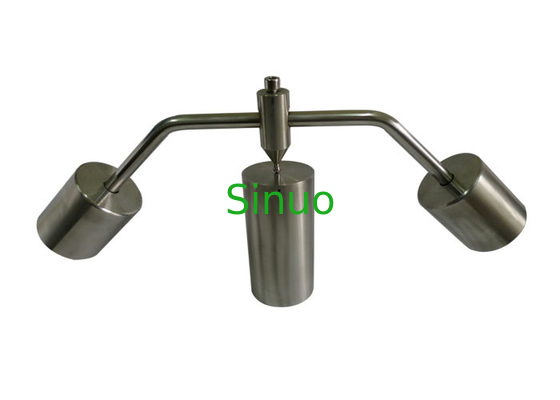

IEC60884-1 20N Ball Pressure Testing Apparatus for Insulation Parts Thermal Resistance Test
Standards & Clauses:
IEC60884-1:2013 “Plugs and socket-outlets for household and similar purposes- Part1: General requirements” clause 25.2 and 25.3
IEC60598-1:2017 “Luminaries-Part1: General requirements and tests” clause 13.2.1
IEC61058-1:2016 “Switches for appliances Part1: General requirements” clause 21.1
IEC60669-1:2017 “Switches for household and similar fixed-electrical installations - Part1: General requirements” clause 21
IEC60320-1:2018 “Appliances couplers for household and and similar general purposes- Part1:General requirements” clause 24.1.2
Samples and Restrictions:
Insulation parts of plugs, sockets, switches, lamps, etc.
Application:
It is suitable for thermal resistance testing on electrical enclosures and external parts made of insulating materials, to verify their heat resistance capacity.
Test Principle:
The specimen is placed in the horizontal position on the support and the hemispherical tip of the ball is pressed against the surface with a force of 20N.
The test is made in a heating cabinet at a temperature of 40/70/125±2°C (please refer to different standard requirements), after1 hour the ball shall be removed from the specimen, which is them immersed within 10 s, in cold water for cooling down to approximately room temperature.
The diameter of the impression caused by the ball is measured and shall not exceed 2 mm.
Structure:
Dimensions of the equipment: approx.: 400 × 200 × 150 (mm) W × D × H, weight: 4kg
Technical Parameters:
| Ball Diameter | Ф5mm, hardening |
| Applied Pressure | 20N±0.2N |
| Support | Ф50×100mm, with temperature measuring hole, made of stainless steel |
| Configuration |

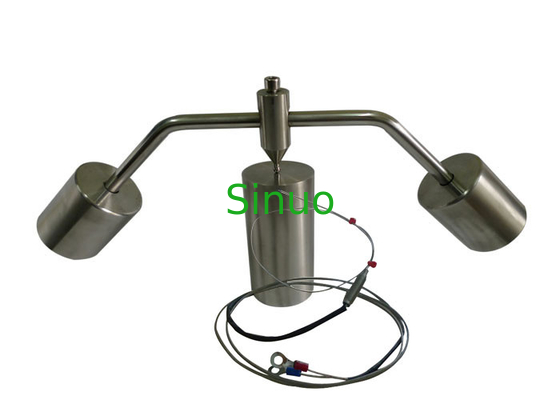

With special aluminum case, special thermocouple for ball pressure tester can be optional
|
