IEC 60335-1 Ceramic Material Fuchsine and Methylated Spirit Pressure Tester 20MPa

The Ceramic Material Fuchsine and Methylated Spirit Pressure Test Apparatus is a specialized laboratory testing system developed for the ceramic material test specified in IEC 60335-1 Clause 22.32.

The equipment is designed to evaluate ceramic material under controlled high-pressure conditions and determine whether the material has been sufficiently and tightly sintered for use in electrical appliances.

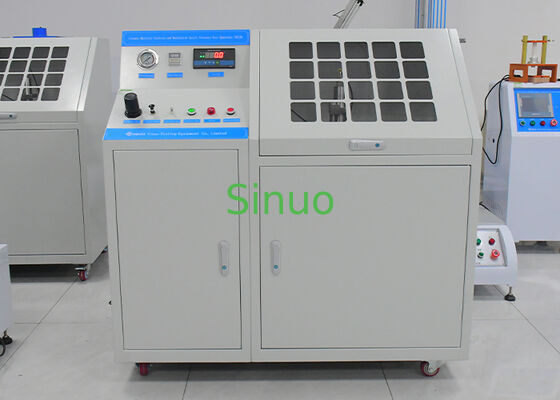

The system combines a stainless-steel pressure container, pressure boosting mechanism, digital pressure indication and protective explosion-resistant enclosure with an observation window. This configuration provides a dedicated solution for electrical appliance manufacturers, component suppliers and safety laboratories carrying out IEC 60335 compliance testing.

With a maximum test pressure of 20 MPa and an adjustable pressure range of 0-20 MPa ±0.5 MPa, the SN1110 provides the pressure capacity required for high-pressure ceramic material testing under IEC 60335-1.

The SN1110 is engineered for ceramic material pressure testing up to 20 MPa, providing sufficient pressure capacity for demanding material evaluation applications.

The equipment is specifically configured for the ceramic material test associated with IEC 60335-1 Clause 22.32, making it suitable for electrical appliance safety laboratories and manufacturers performing compliance verification.

The test container has a capacity of more than 100 mL and is manufactured from stainless steel, with a pressure-bearing capacity above 15 MPa according to the current product specification.

The test pressure can be adjusted within 0-20 MPa ±0.5 MPa, allowing the equipment to accommodate different laboratory test requirements.

The system uses a manual pressurization method with a specified boosting rate of approximately 100 kPa/s, allowing the operator to establish the required test pressure in a controlled manner.

The pressure value is displayed digitally, making it easier for the operator to monitor the applied test pressure during the test.

The equipment incorporates a protective enclosure with an observation window, providing an additional physical barrier during high-pressure testing while allowing the operator to observe the test area.

The ceramic material is prepared as test pieces and exposed to the specified test medium under elevated pressure.

For the IEC 60335-1 Clause 22.32 application, the test involves a solution containing fuchsine in methylated spirit, with the ceramic specimen subjected to high pressure for a controlled period. The purpose is to determine whether the ceramic material has been sufficiently tightly sintered.

The relationship between test pressure and test duration is established by the applicable standard, while the SN1110 provides the pressure-control hardware required to carry out the laboratory procedure.
