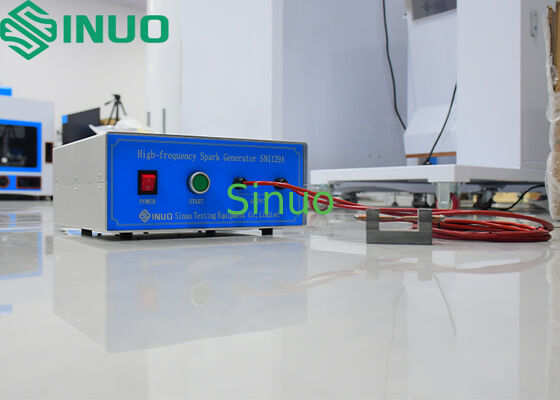

IEC 60335-2-6 High-Frequency Spark Generator 3mm Spark Length
| Spark Length: | About 3mm | Spark Energy: | At Least 0.5J |
| Spark Generation Mode: | Bipolar Output | Peak Voltage: | ±7kv |
| Current: | 40mA; 20kHz | Ignition Distance: | 2-5mm Adjustable |
| High Light: | IEC 60335-2-6 spark generator,high-frequency spark generator 3mm,electrical testing spark generator |
||
IEC 60335-2-6 High-Frequency Spark Generator 3mm Spark Length
Product information:
Standard: Conforms to IEC 60335-2-6 clause 22.111, etc.
Application: It is used to check whether flammable gases are emitted from the vents during the cleaning process of pyrolytic self-cleaning ovens and whether there is an ignition hazard.
Technical parameters:
|
Spark length |
About 3mm |
|
The energy of each spark |
At least 0.5J |
|
Spark generation mode |
Bipolar output |
|
Peak voltage |
±7kv |
|
Current |
40mA; 20kHz; |
|
Ignition distance |
2-5mm adjustable |
Standard pictures:
