IEC 61855 Hair Straightener Tension Uniformity Tester with PLC Intelligent Control

MOQ: 1
Price: Customized
Standard Packaging: Plywood Case
Delivery Period: 30 Days
Payment Method: T/T
Supply Capacity: 10 sets per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN1122G
Input Power:
AC220V 50HZ
Control Method:
PLC
Test Stroke:
60mm
Clamping Force:
20N
Test Speed:
5mm/s
Sensor Range:
0-50N
Load Accuracy:
±0.5%
Force Resolution:
0.01N
Highlight:

PLC Intelligent Tension Tester

,

IEC 61855 Tension Tester

,

Hair Straightener Uniformity Tester

Product Description

IEC 61855 Hair Straightener Tension Uniformity Tester with PLC Intelligent Control


Product information:

Standard: Conform to IEC 61855 clause 5.8, figure 13 and 14.

Specimen and restrictions: Hair straightener.

Test purpose: Used to detect the tension uniformity of the hair straightener.

Test principle: Install 10 tension sensors on the fixed end of simulated hair, use a hair straightener to pull it from the top to the bottom, measure the tension value at each point and record the comparison.


Measurement of tension of hair straightener:

The purpose of the measurement is to evaluate the tension uniformity of the hair straightener.


Ten stainless steel wires with a 1,5 mm diameter and not less than 400 mm in length are used. The flatness of the steel wire shall be less than 1 mm/m and the roughness (Ra) shall be less than 0,6 μm. The steel wires are evenly distributed with a space of 6 mm. Each wire is attached to a tension meter. The test set up is shown in Figure 13. The 10 wires are placed between the hair straightener plates in the middle area and are kept in a vertical state.

The hair straightener is powered on. After 30 s, a force of 20 N is applied onto the two plates. The hair straightener is moved down along the wires at a speed of 1 mm/s, and the distance moved is 60 mm. During the movement, the tension in each wire is read per 0,5 s and the measured tension (F1,F2,...F10) in each individual wire is calculated as the average of all readings. F1,F2,...F10 are recorded.


The tension uniformity of the hair straightener can also be illustrated in a graph, as shown in Figure 14.

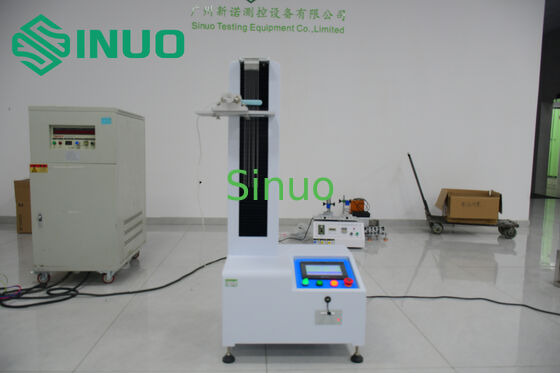

IEC 61855 Hair Straightener Tension Uniformity Tester with PLC Intelligent Control



Technical Parameters:


Item Specification
Model SN1122G
Test Station Single station
Electrical Control Mode PLC intelligent integrated control, operated via 7-inch HMI touchscreen
Driving Mode Servo motor drive
Specimen Clamping Method Mechanical clamping, adjustable clamping position
Force Sensor Range: 5kg (0–50N); Load accuracy: 0.5%; Resolution: 0.01N. 10 pcs arranged at 6mm spacing
Stainless Steel Needles Φ1.5, length＞400mm; Straightness＜1mm/m; Roughness＜0.6μm. One end connects to force sensor, the other fixed by fixture. Total 10 needles with spacing complying with standard requirements
Straightener Clamping Force 20N, applied by spring clamp with scale indication
Stroke 0–400mm (including fixture height); Default: 60mm
Pull Direction Vertical
Straightener Pull-down Speed 1~10mm/s, speed controlled by servo motor. Default automatic speed: 1mm/s
Tension Acquisition Real-time acquisition by PLC via tension sensor and transmitter, with tension curve display
Specimen Power Supply Built-in universal power socket, mains supply
Configuration 20 pcs stainless steel needles, diameter 1.5mm


IEC 61855 Hair Straightener Tension Uniformity Tester with PLC Intelligent Control

Hair Straightener Tension Uniformity T
