IEC 62196-1 Short-time Test Current and Temperature Rising Test System Test Current 6500A

MOQ: 1
Price: Customized
Standard Packaging: Plywood Case
Delivery Period: 30 days
Payment Method: T/T
Supply Capacity: 5 set per month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SNQC1006B-6500A
Output Workstation:
1 DC Output Station
Test Current Output:
DC 200–6500A
Output Voltage:
DC Less Than DC 15V
Contact Power Supply:
Current Range AC (0–2) A
Continuous Mode Test Time:
0.01–99.99 Hours
On/Off Mode Power On/Off Time:
0.01–99.99 Hours
Current Display Accuracy:
±(0.25% Of Reading + 0.25% Of Range), Resolution 1A
Voltage Display Accuracy:
±(0.25% Of Reading + 0.25% Of Range), Resolution 0.01V
Highlight:

IEC 62196-1 test system 6500A

,

short-time current test equipment

,

temperature rising test system vehicle

Product Description



IEC 62196-1 Short-time Test Current and Temperature Rising Test System Test Current 6500A



Product Overview
This advanced test system complies with IEC 62196-1Ed.4CDV 2020 (clause 12.3, 24, 34.2, 34.4, 35.4), IEC 62916-2, and IEC 62916-3 standards. Designed for evaluating temperature rise in EV plugs and sockets under rated current conditions, it accurately assesses surface heating of electrical accessories and verifies terminal temperature rise compliance with international standards. The system also performs short-time high current withstand tests for grounding contacts.
Key Features
  • Computer-controlled operation with custom software for standardized testing procedures
  • Comprehensive assessment of surface heating and electrode temperature rise in charging interfaces
  • Automated data collection and analysis with built-in standard compliance verification
  • Multiple operating modes for flexible testing scenarios
  • Precision temperature measurement system with live testing capability
Technical Specifications
Output Workstation 1 DC output station
Maximum Output Voltage DC < 15V
Adjustable Test Current DC 200-6500A
Current Display Accuracy ±(0.25% reading + 0.25% range), 1A resolution
Voltage Display Accuracy ±(0.25% reading + 0.25% range), 0.01V resolution
Test Current Stability ±(1% set value + 0.5A), ~1s response time
Operating Modes
  • Continuous Mode: Test duration 0.01-99.99 hours
  • On/Off Mode: Programmable power cycles (0.01-99.99 hours on/off, 1-9999 cycles)
  • Automatic Temperature Control:
    • Temperature rise setting: 0-100°C
    • Stability accuracy: ±0.5°C
    • Automatically calculates required current for target temperature
Temperature Measurement System
  • Range: 0-260°C with ±0.3% + 1°C accuracy
  • 16 measurement channels (including ambient temperature)
  • Supports J, K, T, E, S, N, B, R thermocouples
  • Includes 20 K-type 30AWG fine wire thermocouples (2m length)
  • Live testing capability without instrument damage
  • Adjustable scanning speed: 0.1-1800 seconds per channel
  • Automatic ambient temperature compensation
Additional Features
  • Voltage drop and resistance testing capability
  • Touchscreen industrial control computer (Pentium 4/1.8G, 4GB RAM, 64GB SSD)
  • Programmable current settings (≥10 segments)
  • Real-time data visualization with adjustable sampling (100ms-1800s)
  • 8GB+ data storage with USB export (CSV, XLSX formats)
  • Overload/overcurrent protection with automatic cutoff
Physical Specifications
  • Power Supply: AC 220V ±10%, 50/60Hz, 50KVA
  • Dimensions: 1000(W) × 1300(D) × 1800(H) mm
  • Weight: ~400kg with heavy-duty casters
  • Test Fixture: 800×400×400mm with acrylic transparent cover
IEC 62196-1 Short-time Test Current and Temperature Rising Test System Test Current 6500A 0
System interface showing temperature control settings

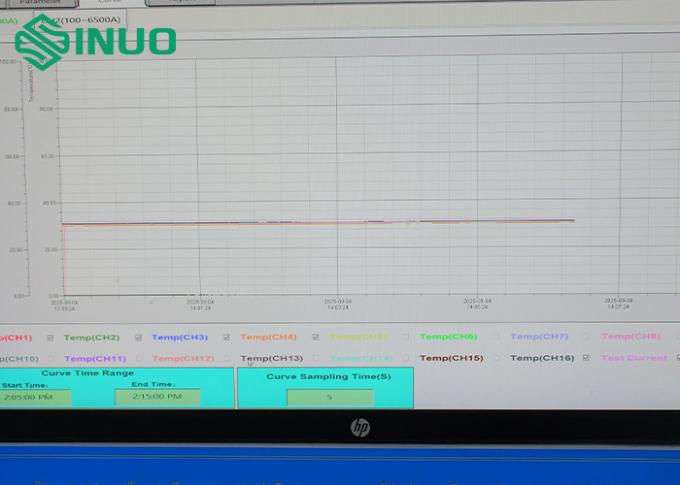

IEC 62196-1 Short-time Test Current and Temperature Rising Test System Test Current 6500A 1
Temperature monitoring with real-time curve display
IEC 62196-1 Short-time Test Current and Temperature Rising Test System Test Current 6500A 2
Complete test system configuration
IEC 62196-1 Short-time Test Current and Temperature Rising Test System Test Current 6500A 3
Test fixture detail with transparent acrylic cover
