IEC60601-2-52 Loading Pad Medical Electrical Equipment
  • name

IEC60601-2-52 Loading Pad Medical Electrical Equipment

MOQ: 1
Price: Customized
Standard Packaging: Carton
Delivery Period: 30 Days
Payment Method: T/T
Supply Capacity: 20 Sets Per Month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SNM11
Impact Load:
1350N
Model:
SNM11
Samples And Restrictions:
Medical Bed
Diameter:
Φ355mm±5mm
Material:
45# Steel, Chrome Plated
Standard:
IEC60601-2-52:2015 Figure 201.104
Highlight:

Medical Electrical Equipment Loading Pad

,

IEC60601-2-52 Loading Pad

,

IEC60601-2-52 Medical Electrical Equipment

Product Description



IEC60601-2-52 Loading Pad Medical Electrical Equipment



Product Information:



1. Standard: conform to YY9706.252-2021 clause 201.5.102 and clause 201.9.8.3.3.1, IEC60601-2-52:2015 clause 201.5.102 and figure 201.104 and clause 201.9.8.3.3.1.

2. Samples and restrictions: medical bed.

3. Application: it is used to simulate human body dynamic load testing on medical beds to verify the reliability of equipment components that support or support patients during normal use during the application of dynamic forces.

4. Test principle: cooperate with human body dynamic load testing equipment to realize dynamic impact testing of medical beds. The impact load is 1350N or the maximum patient weight.



Technical Parameters:



Dimensions

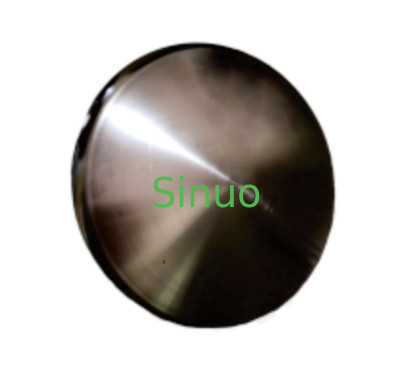

According to IEC60601-2-52:2015 figure 201.104. The load pad is a rigid circular object with a diameter of Φ355mm±5mm, a surface with a convex spherical curvature of R800mm radius, and a front edge radius of R20mm.



IEC60601-2-52 Loading Pad Medical Electrical Equipment 0
















Material 45# steel, chrome plated



IEC60601-2-52 Loading Pad Medical Electrical Equipment 1








Tags:

medical device tester,

medical material tester,

Medical Electrical Equipment Loading Pad
