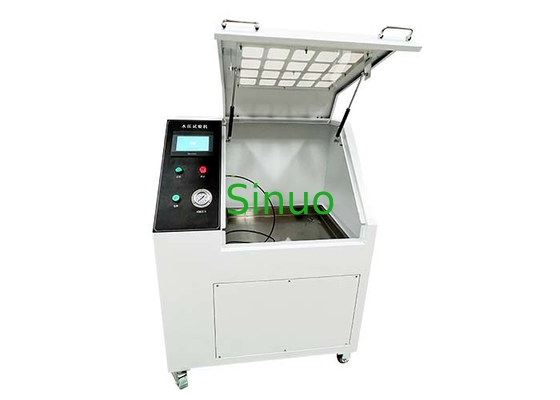

IEC 60601-1 2012 Hydraulic Pressure Testing Machine Medical Pressure Vessels Testing
  • name
  • name
  • name
  • name

IEC 60601-1 2012 Hydraulic Pressure Testing Machine Medical Pressure Vessels Testing

MOQ: 1
Price: Customized
Standard Packaging: Plywood Case
Delivery Period: 30 days
Payment Method: T/T
Supply Capacity: 5 sets per month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN1125
Standard:
Conform To IEC 60601-1: 2012
Sample:
Medical Electrical Equipment
Test Station:
Single Station
Drive Mode:
Booster Pump
Test Medium:
Clean Water
Test Pressure:
0.5-40MPa
Boost Rate:
0-0.3MPa/s
Pressure Time:
0-999999s
Highlight:

Medical Pressure Vessels Testing Machine

,

Hydraulic Pressure Testing Machine

Product Description



IEC 60601-1 2012 Hydraulic Pressure Testing Machine Medical Pressure Vessels Testing



Product Information:


Standard: IEC60601-1:2012 "Medical electrical equipment - Part 1: Generay requirements for basic safety and essential performance".

Samples and restrictions: Medical pressure vessels, electric water heaters for household and similar purposes, and storage water heaters.

Test purposes: Used for testing various pressure-bearing products such as valves and containers for water pressure resistance, static pressure testing and water sealing performance testing.

Test principle: Use a booster pump to boost pressure, and monitor and feedback the pressure value in real time through a pressure sensor connected to the pipeline. Use the controller to control components such as electric valves and pressure regulating valves to ensure that the water pressure and pressure holding time in the pipeline meet standard requirements.



Equipment structure:



Chamber structure: The equipment adopts PLC control and touch screen operation (computer version is optional). Data and pressure curve display can be printed, and test pressure, constant pressure time, pressure increase rate, etc. can be set. The pneumatic water pressure boosting pump and its pressure control device have stable performance, easy operation, and beautiful appearance. It combines the advantages of many domestic and foreign similar products and is the first choice of major domestic metrology institutions and laboratories.


Technical Specifications:


Model SN1125 SN1125A
Electrical control method PLC control and touch screen operation PLC control, computer operation, reports can be generated and printed, and the computer has WiFi function
Test station Single station
Drive mode Booster pump drive
Test medium Clean water
Test pressure 0.5-40MPa
Boost rate 0-0.3MPa/s adjustable, default 0.13MPa/s
Pressure to hold or apply 0-999999s can be set
Water tank heating function Optional (0-80°C)
Test process Manual loading and unloading test, fully automated testing process
Equipment dimensions and weight L*W*H=1300*750*1450, weight about 200KG L*W*H=1870*750*1450, weight about 260KG
Usage environment Atmospheric pressure is 80~106kpa. Ambient temperature is 5~40°C. Relative humidity (20~80) %RH. Usage location: no violent shaking or vibration, no electromagnetic interference, no dust, no explosive and corrosive gases, good heat dissipation.
Reference curve

IEC 60601-1 2012 Hydraulic Pressure Testing Machine Medical Pressure Vessels Testing 0

IEC 60601-1 2012 Hydraulic Pressure Testing Machine Medical Pressure Vessels Testing 1
Usage environment Power supply: AC220V±10%/50-60Hz, operating environment: working temperature 0-40℃, humidity 30%-90%.


IEC 60601-1 2012 Hydraulic Pressure Testing Machine Medical Pressure Vessels Testing 2



IEC 60601-1 2012 Hydraulic Pressure Testing Machine Medical Pressure Vessels Testing 3



IEC 60601-1 2012 Hydraulic Pressure Testing Machine Medical Pressure Vessels Testing 4
