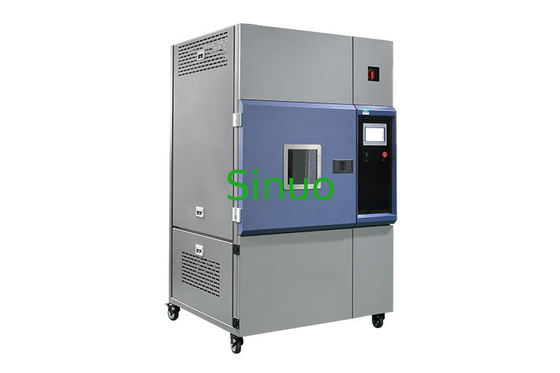

ISO 105 Xenon Aging Environmental Test Chamber SAE J2412

ISO 105 Xenon Aging Environmental Test Chamber SAE J2412
ISO 105 Xenon Aging Environmental Test Chamber SAE J2412 ISO 105 Xenon Aging Environmental Test Chamber SAE J2412 ISO 105 Xenon Aging Environmental Test Chamber SAE J2412 ISO 105 Xenon Aging Environmental Test Chamber SAE J2412

Large Image :  ISO 105 Xenon Aging Environmental Test Chamber SAE J2412

Product Details:
Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN883-X65
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Customized
Packaging Details: Plywood case
Delivery Time: 30 Days
Payment Terms: L/C, , T/T, Western Union, MoneyGram
Supply Ability: 10 sets per month
Detailed Product Description
Applied Standards: ISO 105, SAE JI885,etc. Light Source: Q-LAB 6500W Xenon Lamp
Light Source Life: About 2000h Irradiance Display Band: 340nm/420nm/300~400nm
Blackboard Temperature: 40℃~110℃ Black Mark Temperature: 40℃~120℃
Chamber Temperature: 38℃~80℃ Test Conditions: Light, Darkness And Water Spray
Dimensions: 124cm×114cm×202cm (W×D×H) Sample Temperature: Blackboard Temperature: 40℃~110℃ Black Mark Temperature:40℃~120℃
High Light:

Xenon Aging Environmental Test Chamber

,

SAE J2412 Environmental Test Chamber



ISO 105 High Quality Advanced Xenon Aging Environmental Chamber SAE J2412



Product Description:



Xenon lamp aging tester adopts imported 6500W long arc water-cooled xenon lamp as the light source, through changing and controlling the light irradiance, temperature (sample rack temperature, working room temperature), relative humidity, spraying method, etc., to simulate the outdoor climate of the comprehensive conditions of light, heat, rain, etc., the samples of artificial aging test. The equipment complies with GB, ISO, ASTM and other test methods, and is suitable for laboratory light source irradiation testing of various materials and products such as coatings, plastics, rubber, chemical building materials and automobile parts.





Technical Parameters:



Dimensions 124cm×114cm×202cm (W×D×H)
Exposure area 6500cm2/ About 65 standard samples (140mm×70mm)
Light source 6.5kW long arc water-cooled xenon lamp (imported from the United States Q-LAB)
Light source life About 2000h (based on irradiance 0.51W/m2 @340nm)
Irradiance display band 340nm,420nm,300~400nm optional
Irradiance range

0.3W/m2~1.1 W/m2(@340nm)

40 W/m2~120 W/m2(@300nm~400nm)

Sample temperature

Blackboard temperature: 40℃~110℃

Black mark temperature:40℃~120℃

Temperature in the chamber 38℃~80℃
Humidity in the chamber

When illuminated: 30%RH~75%RH (related to temperature)

In the dark: up to 100%RH

Test Conditions

Free combination of light, darkness and water spray

Supported test standards

Conforms to SAE J2412, SAE J2527, ASTMG 155, ISO 105-B02, ISO 105-B04, ISO 105-B06, ISO 4892-2-A, SO 11341-1, GB/T 16422-2,GB/T 1865, etc.

With 4 custom methods, users can set test parameters by themselves to meet most common standard requirements.

ISO 105 Xenon Aging Environmental Test Chamber SAE J2412 0



Equipment Features:



  1. PLC controller of American GE company, automatic control, safe and reliable operation
  2. With touch screen man-machine interface, the operation is simple and powerful
  3. Real-time display and automatic control of sample rack temperature (BST, BPT), working room temperature (DB), relative humidity, light irradiance energy, test time
  4. Equipment status and equipment failure monitoring
  5. With 16 programs of defaut setting as per different standards and 4 custom programs which can be defined by operator
  6. Come with pure water treatment machine and chiller, which ensure the water supply quality for testing is high
  7. It is with imported Q-LAB water-cooled xenon-arc lamp, spectral irradiance 0.3W/m2~1.1 W/m2 (@340nm), together with other imported high quality components, the chamber’s quality is much higher than other versions of xenon weathering test chambers in the markets.



ISO 105 Xenon Aging Environmental Test Chamber SAE J2412 1

ISO 105 Xenon Aging Environmental Test Chamber SAE J2412 2

ISO 105 Xenon Aging Environmental Test Chamber SAE J2412 3

ISO 105 Xenon Aging Environmental Test Chamber SAE J2412 4
