MOQ: | 1 |
Price: | Customized |
Standard Packaging: | Plywood Case |
Delivery Period: | 30 days |
Payment Method: | T/T |
Supply Capacity: | 5 Sets Per Month |

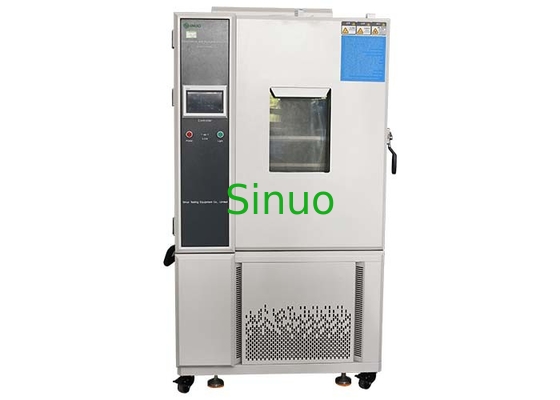

IEC 60068-2-78 Intelligent Control System Temperature And Humidity Chamber -40 ℃~+180℃
Product overview:
This test chamber is used for cold, heat, humidity and dryness testing of raw materials and devices such as electronics, electricians, electrical appliances, plastics, etc. The purpose is to confirm the products reliability of storage and transportation under high and low temperature alternating heat and humidity.
It conforms to standards:
IEC60068-2-1:2007 “Environmental Testing-Part 2-1: Tests-Test A: Cold, IDT”
IEC60068-2-2:2007 “Environmental Testing-Part 2-1: Tests- Test B-Dry heat, IDT”
IEC60068-2-78:2012 “Environmental Testing-Part 2-78: Tests-Test Cab: Damp heat, steady state, IDT”
IEC60068-2-30:2005 “Environmental Testing-Part 2-30: Tests-Test Db: Damp heat, cyclic (12h+12h cycle), IDT”
Structure:
This machine adopts a closed chamber structure with the following features:
A. It has an extremely wide temperature and humidity control range to meet the various needs of users.
B. It adopts a unique balanced temperature adjustment and humidity control mode to adjust the ideal temperature and humidity environment. The heating and humidification capability are stable and balanced, and the temperature and humidity control are high-precision and high-stability.
C. Automatic selection of refrigeration circuit: The automatic control device has the ability of automatically starting the running refrigeration circuit according to the set value of temperature, can start the cooling directly under the high temperature state.
The refrigeration adopts the air-cooled condensing unit with fully enclosed compressor (imported).
D. The door is equipped with an observation window, which is convenient for observing the test state of the test sample.
Technical parameters:
Control & Operation | PLC and touch screen intelligent control system | |
Chamber Size
|
Inner Size | External Size |
800*600*850 mm | 1350*1150*1950 mm | |
Temperature Range | -40 °C ~+180°C | |
Humidity Range | 10%~98%RH | |
Temperature fluctuation | ±0.5℃ | |
Humidity fluctuation | ≤2.5% | |
Temperature deviation | ≤±2.0℃ | |
Humidity Deviation | ≤±3% | |
Heating Rate | ≧2-3°C/min | |
Cooling Rate | ≧1°C/min, average no load | |
Load condition | None | |
Working noise |
A sound level≤70dB(A) (Measured in a soundproof room with an ambient temperature of 25°C and low echo. Using A weighting, test the average of 9 points. Each test point is 1 meter away from the noise source horizontally and 1 meter above the ground.) |
|
Temperature and Humidity Range Scheme | ||
Structural features | ||
Insulation enclosure structure |
1. Outer wall material: A3 board spraying. 2. Inner wall material: brushed stainless steel plate SUS﹟304. 3. Chamber thermal insulation material: 100mm high temperature resistant rigid polyurethane foam. 4. Chamber door insulation material: 100mm high temperature resistant rigid polyurethane foam. |
|
Bottom structure strength | The weight capacity of the track at the bottom of the test chamber: ≤100Kg/m² (load) | |
Air conditioning channel |
1. Stainless steel long-axis centrifugal fans: 2 sets/90W. 2. Fan, heater, evaporator (also dehumidifier), drainage device, pressure balance port, adjustable air deflector, temperature sensor |
|
Standard configuration of test chamber |
1. Observation window: 400x600x40mm 3-layer vacuum tempered glass 2. Flat embedded handles 3. Door hinges: SUS #304 imported hinges 4. Energy-saving lamp inside the chamber 5. Lead hole: φ50mm 1 piece |
|
Chamber door |
1. The single-piece door opens outwards, with the hinge on the left and the handle on the right (when facing the front of the box). 2. Equipped with a safety door locking mechanism (the door can be opened in the test room), the door is equipped with electric heat to prevent condensation, and the visible range of the insulating glass observation window (W400×H600mm). The door frame is equipped with an anti-condensation electric heating device. |
|
Control panel | Controller 7-inch display screen, temperature (humidity) control display screen, operating indicator light, and lighting button. | |
Mechanical room | Refrigeration unit, compressor water tray, pressure relief device, heating device | |
Power distribution cabinet | Distribution board, cooling fan, main power switch, transformer, intermediate relay, time relay, solid-state relay, AC contactor, circuit breaker | |
Heater |
1. Fin-type radiator-shaped stainless steel electric heater 2. Heating control method: SSR (Solid State Relay) non-contact equal period pulse width modulation 3. Heating power: approximately 3KW |
|
Power cable hole | Located on the back of the chamber |
Controller technical parameters |
Accuracy: temperature ±0.1℃+1digit, humidity ±1%R.H+1digit Resolution: temperature ±0.01℃, humidity ±0.1%R.H. Temperature slope: 0.1~9.9 can be set. It has upper and lower limit standby and alarm functions. Temperature and humidity input signal dry and wet bulb PT100x2. 9 sets of P.I.D control parameter settings, P.I.D automatic calculation. Dry and wet bulb with automatic correction screen function |
Control method |
1. Anti-integral saturation PID 2. BTC balanced temperature control method + DCC intelligent cooling capacity control + DEC intelligent electrical control (temperature test equipment) 3. BTHC balanced temperature and humidity control method + DCC intelligent cooling capacity control + DEC intelligent electrical control (temperature and humidity test equipment) |
Screen display function |
It adopts screen dialogue mode, no key input is required, and the screen directly touches the options. Temperature set (SV) and actual (PV) values are displayed directly. Can display the currently executed program number, segment, remaining time and number of cycles. Running accumulated time function. The temperature program setting value is displayed in a graphical curve, with the function of real-time display of the program curve execution. Equipped with a separate program editing screen, at least 5 segments of temperature, humidity and time can be entered on each page. Chinese and English can be switched at will. The fault prompt screen is displayed. The screen backlight can be adjusted. The screen display protection function can be set to timer, TIMER or manual shutdown. |
Program capacity and control functions |
Available program groups: maximum to 120 PATTEN. Available memory capacity: total of 12000 SEGMENTS. Repeatable execution of commands: each command can be executed up to 3200 times. The program is created in a conversational manner, with functions such as editing, clearing, and inserting. SEGMENTS time setting 0~99Hour59Min. Programmable timing control module device x2 sets. With power-off program memory, automatic start and continuous program execution after power-on. With RS-485 or RS-232 communication interface. Graphic curves can be displayed in real time during program execution. With automatic adjustment of freezing capacity. With scheduled start and shutdown function. With date and time adjustment function. Key and screen lock (LOCK) function. |
![]() |
