IEC60335-1 Temperature and Humidity Test Chamber with Automatic Water Supply

MOQ: 1
Price: Customized
Standard Packaging: Plywood case
Delivery Period: 30 days
Payment Method: T/T
Supply Capacity: 10 sets per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate(Cost Additional)
Model Number
SN881-100L
Temperature Range:
-40 °C ~+150°C(Customized)
Humidity Range:
20%～98%RH
Temperature Fluctuation:
±0.5℃
Humidity Fluctuation:
≤2.5%
Temperature Deviation:
≤±2.0℃
Humidity Deviation:
≤±3%
Heating Rate:
≧2-3°C/min (average, Non-load)
Cooling Rate:
≧1°C/min (average, Non-load)
Highlight:

IEC60335-1 humidity test chamber

,

automatic water supply test chamber

,

temperature test chamber with warranty

Product Description

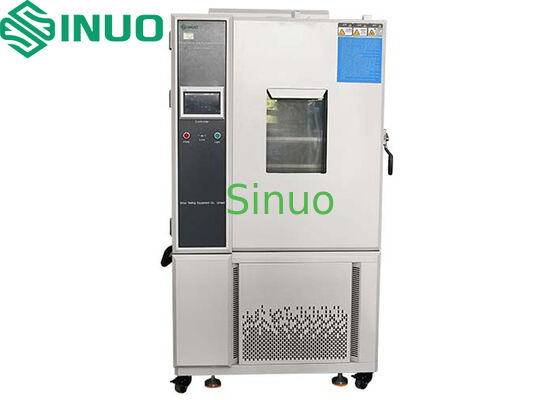

IEC60335-1 Temperature and Humidity Test Chamber with Automatic Water Supply
This temperature and humidity test chamber is designed to meet IEC60335-1 clause 15 requirements for comprehensive environmental testing. It performs cold, heat, humidity, and dryness testing on raw materials and devices including electronics, electricians, electrical appliances, and plastics to verify product reliability during storage and transportation under alternating temperature and humidity conditions.
Compliance Standards
  • IEC60068-2-1:2007 "Environmental Testing - Part 2-1: Tests - Test A: Cold, IDT"
  • IEC60068-2-2:2007 "Environmental Testing - Part 2-1: Tests - Test B: Dry heat, IDT"
  • IEC60068-2-78:2012 "Environmental Testing - Part 2-78: Tests - Test Cab: Damp heat, steady state, IDT"
  • IEC60068-2-30:2005 "Environmental Testing - Part 2-30: Tests - Test Db: Damp heat, cyclic (12h+12h cycle), IDT"
Structural Features
  • Closed chamber structure with wide temperature and humidity control range
  • Unique balanced temperature adjustment and humidity control for stable, precise environmental conditions
  • Automatic refrigeration circuit selection based on temperature settings
  • Observation window for monitoring test samples
  • Air-cooled condensing unit with fully enclosed imported compressor
Technical Parameters
Control & Operation PLC and touch screen intelligent control system
Chamber Size Inner: W500×H500×D400mm | External: W780×H1650×D1350mm
Temperature Range -40°C to +150°C
Humidity Range 20% to 98% RH
Temperature Fluctuation ±0.5°C
Temperature Deviation ≤±2.0°C
Humidity Fluctuation ≤2.5%
Humidity Deviation ≤±3%
Heating Rate ≥2-3°C/min (average, non-load)
Cooling Rate ≥1°C/min (average, non-load)
Working Noise ≤70dB(A)
Construction Details
Insulation Enclosure Structure
  • Outer wall: A3 board spraying
  • Inner wall: Brushed stainless steel plate SUS #304
  • Chamber thermal insulation: 100mm high temperature resistant rigid polyurethane foam
  • Door insulation: 100mm high temperature resistant rigid polyurethane foam
Standard Configuration
  • Observation window: 400x600x40mm 3-layer vacuum tempered glass
  • Flat embedded handles
  • Door hinges: SUS #304 imported hinges
  • Energy-saving interior lighting
  • Lead hole: φ50mm (1 piece)
Cooling System
  • Operation mode: Air-cooled mechanical compression single-stage refrigeration
  • Compressor: Tecumseh fully hermetic compressor (France)
  • Heat exchange: Ultra-high-efficiency SWEP cold coal design (Sweden SUS#316)
  • Refrigerant: Honeywell R404a (ozone depletion index 0)
  • Automatic cooling capacity adjustment for energy efficiency
Control System
  • Controller: Cold balanced touch-type intelligent programmable temperature controller
  • Display: 7-inch color touch screen with graphical curve display
  • Control modes: Program/fixed value operation
  • Program capacity: 120 program groups, 12,000 segments total
  • Communication: RS232/RS485 interface
  • Language support: Chinese/English interface
Safety Protection
  • Compressor protection: Overheating, overcurrent, overpressure
  • Test chamber: Adjustable over-temperature protection with dual safety
  • Electrical: Leakage protection, overload and short circuit protection
  • Automatic water supply with low water level protection
  • Power failure protection
Installation Requirements
Site Conditions
  • Flat, well-ventilated location free from flammable/explosive/corrosive gases
  • No strong electromagnetic radiation sources nearby
  • Drainage floor drain within 2 meters of refrigeration unit
  • Ground bearing capacity: ≥800kg/m²
  • Adequate maintenance space around equipment
Environmental Conditions
  • Temperature: 5°C to 35°C
  • Relative humidity: ≤85%
  • Air pressure: 86kPa to 106kPa
Power Requirements
  • Power supply: AC380V three-phase four-wire + protective ground wire
  • Voltage: 380V ±10%
  • Frequency: 50Hz ±0.5Hz
  • Ground resistance: <4Ω
  • Power capacity: Approximately 5kW
  • Maximum current: 18A
Water Source
  • Must use purified water
  • Tap water requires treatment
Note: Power cable (5-core, 4 meters) and lead hole with rubber plug included. Custom configurations available based on user requirements where chamber structure allows.
