| MOQ: | 1 |
| Price: | Customized |
| Standard Packaging: | Plywood Case |
| Delivery Period: | 30 Days |
| Payment Method: | T/T |
| Supply Capacity: | 20 sets per month |

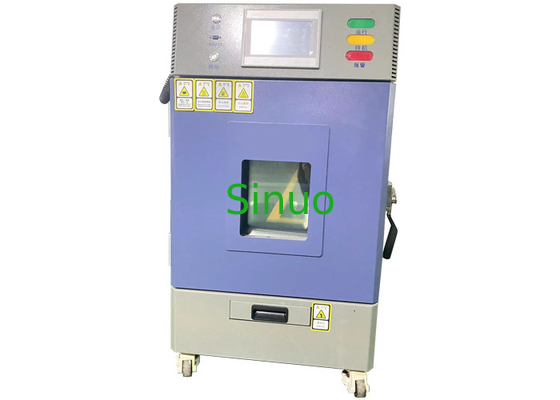

IEC 60068-2 Constant Temperature And Humidity Environmental Testing Chamber 64L
Product Overview For Constant Temperature And Humidity Environmental Testing Chamber:
It conforms to standards:
IEC60068-2-1:2007 “Environmental Testing-Part 2-1: Tests-Test A: Cold, IDT”
IEC60068-2-2:2007 “Environmental Testing-Part 2-1: Tests- Test B-Dry heat, IDT”
IEC60068-2-78:2012 “Environmental Testing-Part 2-78: Tests-Test Cab: Damp heat, steady state, IDT”
IEC60068-2-30:2005 “Environmental Testing-Part 2-30: Tests-Test Db: Damp heat, cyclic (12h+12h cycle), IDT”
Technical Parameters For Constant Temperature And Humidity Environmental Testing Chamber:
| Technical Parameters | ||
| Power Supply | Single phase: AC220V ± 10%, 50Hz / 60Hz or match client's local power grid | |
| Control & Operation | PLC and touch screen intelligent control system | |
|
Chamber Size
|
Inner Size | External Size |
| 400*400*400 mm | 660*1020*1300mm | |
| Temperature Range | -40 °C ~+150°C (can be customized) | |
| Humidity Range | 20%～98%RH (can be customized) | |
| Temperature Resolution | 0.1℃ | |
| Temperature Fluctuation | ±0.5℃ | |
| Temperature Uniformity | ±2℃ | |
| Humidity Deviation | ±3%RH | |
| Heating Rate | ≧2-3°C/min (can be customized) | |
| Cooling Rate | ≧0.7-1°C/min (can be customized) | |
| Temperature and Humidity Range Scheme |  |
|
| Main System Composition | ||
| Chamber Body | The inner chamber is made of SUS304# stainless steel plates, rounded shape, smooth and easy for clean | |
| The outer box is made of 304# stainless steel plate, rounded shape, smooth and easy for clean | ||
| Insulation material: polyurethane foam | ||
| Observation window: double-layer explosion-proof tempered glass | ||
| Shelf: Made of 304 stainless steel, detachable shelf | ||
| Heating System | Heating method: electric heating | |
| Adopting the latest new ceramic heating frame, the ceramic material is resistant to high temperature and with good insulation, will not cause leakage short circuit phenomenon. The middle is connected with German imported heating wire, the wire diameter is thick, high temperature resistance and dry burning resistance. The quartz glass tube is inserted in the middle of the heating wire, to prevent the short circuit fault due to heating wire contacting metal chamber. | ||
| Thermal cycling: forced circulation air duct to ensure the heat transfer of the heater, to prevent local temperature is too high and to ensure the required temperature in the working chamber. | ||
| Humidification System | Humidification method: adopts external humidification structure, transfers through the air duct. The advantage is that the speed is stable and the influence on the temperature of the inner box is small, so that the temperature rise is stable and the humidification effect is ideal. | |
| Humidification tube: U-shaped design plus over-temperature probe hole, heating line and heating system adopt the same imported brand material, with anti-dry function to ensure long service life and long-lasting durability of humidification tube. | ||
| Humidification and hydration: There is a drawer type water adding box. The water level can be visually observed through the liquid level display scale on the circulating water tank. The water level is automatically controlled. With water shortage alarm. | ||
| Cooling System | Refrigeration method: air-cooled cooling using compressor-heat exchanger | |
| Compressor: Tecumseh, French brand | ||
| Cold air circulation: forced circulation air duct ensures smooth air return and air supply, ensuring temperature uniformity in the working chamber. | ||
| Control System | Touch screen: TIME880, SAMWONTECH | |
| Temperature control: PID self-tuning, using Class A PT100 platinum resistance sensor | ||
|
Function: fixed value test and program test Fixed value test: When the test environment only requires a single temperature and humidity, select this mode to set the required temperature, humidity and running time. Program test: When the test environment requires multiple temperatures and humidity, select this mode to set the temperature, humidity and running time of each program. Operator can set the program running sequences and can set up to 100 groups of programs. |
||
| Data Storage | With temperature and humidity curve interface, the data changes and processes can be recorded, with standard R232 interface or U disk communication interface, the data can be downloaded. | |
| Safety Protection | Power-off memory function, phase sequence protection, leakage protection, over-temperature protection, compressor overload protection, water shortage alarm, abnormal protection. | |
|
|
