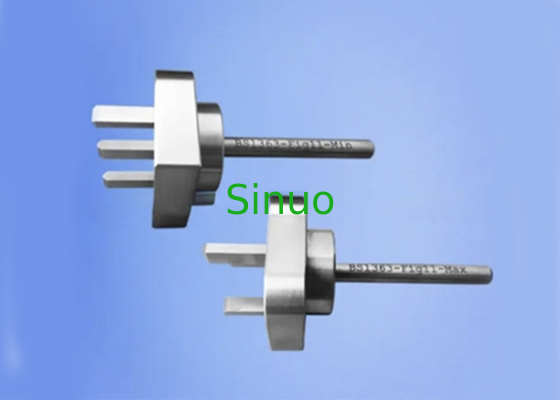

IEC 60884-1 Figure 11 Measuring Gauges For Household
  • name
  • name
  • name
  • name

IEC 60884-1 Figure 11 Measuring Gauges For Household

MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 10 days
Payment Method: T/T
Supply Capacity: 20 Sets Per Month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Highlight:

Figure 11 Measuring Gauges

,

IEC 60884-1 Measuring Gauges

Product Description



Gauges



Product Information:



These measuring gauges confirm to the standard of IEC 60884-1:2013 clause 9, BS1363-1, BS 1363-2 and BS 546, which are used for the dimensional measurement and verification of the plug socket for household and similar use. The specific measuring gauges are made according to following:



Serial No. Name Figure No. Standard Quantity
a Go Gauge for Socket-Outlet Figure 11 BS 1363-2 2
b Contact Test Gauge Figure 12 BS 1363-2 2
c Non-Contact Test Gauge Figure 14 BS 1363-2 2
d Gauge for Plug Pins Figure 5 BS 1363-1 2
e Go Gauge for Plug Figure 3 (Rating:15A) BS 546 2
f Maximum Go Gauge for Socket-outlet Figure 4 (Rating:15A) BS 546 2
g Minimum Go Gauge for Socket-outlet Figure 5 (Rating:15A) BS 546 2
h Test Pin Figure 1 BS 1363-2 2
Total       16



IEC 60884-1 Figure 11 Measuring Gauges For Household 0



IEC 60884-1 Figure 11 Measuring Gauges For Household 1
