| MOQ: | 1 |
| Price: | Customized |
| Standard Packaging: | Aluminium Box |
| Delivery Period: | 3~5 Days |
| Payment Method: | T/T |
| Supply Capacity: | 100 pcs per month |

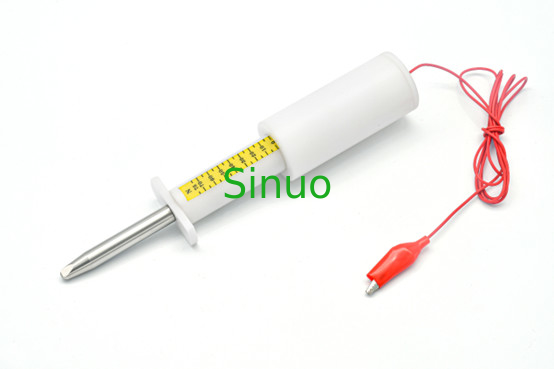

Test Probe 11 with Dynamometer 75N
Standards:
Standard:it is designed and made according to IEC 61032 Figure 7, required by many standards such as IEC 60884-1:2013, IEC 60669-1: 2017, IEC 60335-1:2020, etc.
Application:It is used to verify the protection of persons against access to hazardous parts, and to verify the mechanical strengthen of openings in the enclosure or internal barriers.
Test sample:Electrical outlet or similar electrical appliances and other hazardous live parts.
Feature:It can be used for anti-electric shock test as it has an banana plug, and it has built-in dynamometer 75N with resolution of 5N.
Technical Parameters:
| Parameters /Model | SN2210-7T |
| Name | Test Probe 11 with Dynamometer |
| Probe Tip Length (mm) | 19.95-20.00 |
| Probe Length with Tip (mm) | 80±0.2 |
| Probe Tip Cylindrical Radius (mm) | R2±0.05 |
| Probe Tip Spherical Radius (mm) | R4±0.05 |
| Probe Tip Cylindrical Angle (°) | 37o 0 -10’ |
| Probe Tip Spherical Angle (°) | 14 o 0 -10’ |
| Probe Diameter (mm) | Ф12 0 -0.05 |
| Guard Diameter (mm) | Ф50 |
| Guard Thickness (mm) | 5±0.5 |
| Built-in dynamometer | With force of 0-75N, resolution of 5N |
|
|
