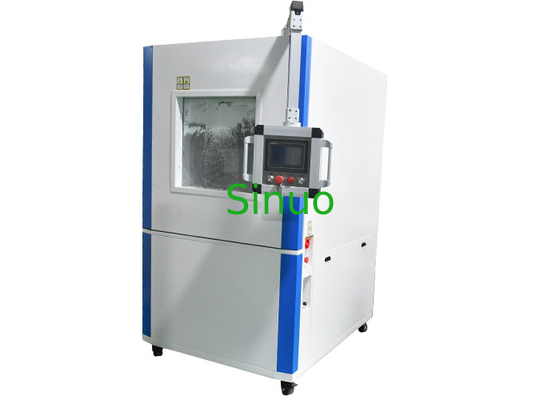

IEC60529 IP5/6 Sand and Dust Environmental Test Chamber 1000L
Standards & Clauses:
IEC60529:2013 “Degrees of protection provided by enclosure (IP code)” IP5 & IP6
IEC60598-1:2014 “Luminaries-Part1: General requirements and tests”
Technical Parameters:
| Control & operation | PLC & touch screen | ||
| Chamber size |
Inner size: WDH=600*600*600 mm |
Inner size: WDH=800*800*800 mm | Inner size: WDH=1000*1000*1000mm |
|
External size: WDH=1200*900*1650mm |
External size: WDH=1300*970*1700 mm |
External size: WDH=1500*1400*1900 mm |
|
| Square-meshed sieve |
Nominal wire diameter: Ф50µm,nominal width of a gap between wires: 75µm |
||
| Talcum powder | Dry talcum powder which can pass through the square-meshed sieve | ||
| Dust concentration | The amount of talcum powder in the test chamber is 2Kg /m³ | ||
| Air velocity | ≤2m / s | ||
| Air flow meter | 1-25L/min, digital display | ||
| Test time | 1s~99 H 59 m 59s, can be preset | ||
| Dust blowing period | Stop/blowing time: 1s~99 H 59 m 59s, can be preset | ||
| Blowing sequence | OFF-ON-OFF | ||
| Vacuum pumping speed | 60-600L/min | ||
| Blower | Full plastic centrifugal fan | ||
| Heating device | New ceramic heating frame | ||
| Safety protection | Phase sequence protection, leakage protection, over temperature protection, abnormal protection | ||
a. Fine dust: below 75um
b. Coarse dust: below 150um
c. The dust concentration in the chamber and pipeline is 2kg/m³
d. Air velocity: less than 2m/s (adjustable)
e. The amount of talc powder: Prepared according to standard requirements (prepared by user, at least 2KG for the first time, as talc powder is not allowed to ship internationally)
f. PLC and touch screen intelligent control system
g. PT100 sensor
h. Over temperature protection function
i. Power phase loss protection
j. Leakage circuit breaker
k. Power supply: Three phase AC380 V / 50Hz
l. Door: Tempered glass door
m. Vacuum pump: 60-600L/H
n. Controller: using programmable controller (this controller has the following multiple arbitrary setting control functions):
① Dust blowing time (stop, blowing) h/m/s adjustable
② Cycle period: arbitrarily adjustable
③ Preset test time: 0s～999h99m99s, arbitrarily adjustable
④ Power supply: off-on-off
o. Metal screen size: nominal wire diameter 50um, nominal distance between wires 75um or less than 150um
p. Fan: All plastic centrifugal fan
Remarks: This test chamber can meet the requirements of degrees of protection provided by enclosures of household appliances, low-voltage electrical appliances, automobile, motorcycle parts and etc.
Structure and Panel Description:
The structure and working principle of the dust test chamber are the same as IEC60529-2013, and equipped with an additional airflow heating device, in order to facilitate the use in the case of low ambient temperature or high humidity. When the system is working, operator first puts the dried standard talc powder (2kg/M3) into the dust test chamber, then puts test sample into the dust test chamber, and then starts the fan to make a high-density dust mist formed in the chamber until the preset test time is reached (Usually 8h).
