Applied Standard: | IEC60068 | Control And Operation: | PLC And Touch Screen Intelligent Control System |
---|---|---|---|
Temperature Deviation: | ≦±2.0℃ | Temperature Fluctuation: | ±0.5℃ |
Temperature Uniformity: | ±2℃ | Humidity Range: | 30%〜98%RH |
Brand: | Sinuo | Warranty: | 1 Year |
High Light: | PLC Environmental Test Chamber,Walk In Environmental Test Chamber,Touch Screen Environmental Test Chamber |

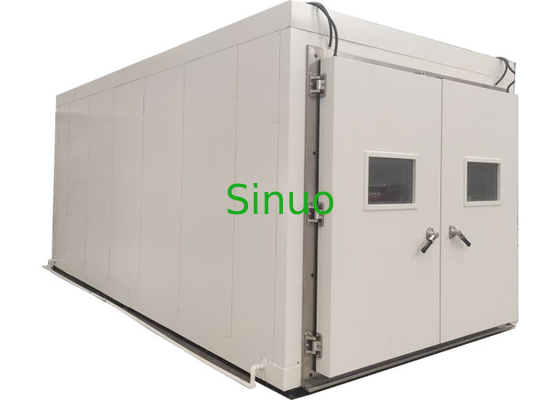

IEC 60068 Constant Temperature And Humidity Environmental Test Chamber
Applied standards:
This programmable temperature chamber is required by:
IEC60068-2-1:2007 “Environmental Testing-Part 2-1: Tests-Test A: Cold, IDT”
IEC60068-2-2:2007 “Environmental Testing-Part 2-1: Tests- Test B-Dry heat, IDT”
IEC60068-2-78:2012 “Environmental Testing-Part 2-78: Tests-Test Cab: Damp heat, steady state, IDT”
IEC60068-2-30:2005 “Environmental Testing-Part 2-30: Tests-Test Db: Damp heat, cyclic (12h+12h cycle) , IDT”
Control & Operation | PLC and touch screen intelligent control system |
Chamber Size (Can be customized) |
8m3: WDH=2×2×2m 12m3: WDH=3×2×2m 20m3: WDH=2×2×5m 50m3: WDH=5×2×5m |
Temperature Range (Optional) |
Maximum test temperature: 80 ° C, 120 ° C; Minimum test temperature: -60 ° C, -40 ° C, -20 ° C, 0 ° C |
Temperature Deviation | ≦±2.0℃ |
Temperature Fluctuation | ±0.5℃ |
Temperature Uniformity | ±2℃ |
Humidity Range | 30%〜98%RH |
Humidity Deviation | ±5.0%RH |
Heating Rate | ≤2.5°C/min (nonlinear, no load) |
Cooling Rate | Average 1.0 ° C / min |
Features:
1. The test system has advanced and reasonable structural design, standardized manufacturing process, beautiful appearance and generous appearance.
2. The main functional components of the test chamber are world famous branded ones. The test chamber has best control of noise and energy saving.
3. The matching of components and assembly is good. The main functional components are imported from the internationally branded companies, which improves the safety and reliability of the test chamber, and can ensure the long-term, high-frequency usage purposes.
4. The equipment has good operability, maintainability, good temperature stability and durability, good safety performance. It does not pollute the environment and endanger human health.
