| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | Plywood |
| Delivery Period: | 20 Days |
| Payment Method: | T/T, L/C, Western Union, MoneyGram |
| Supply Capacity: | 10 Sets Per Month |

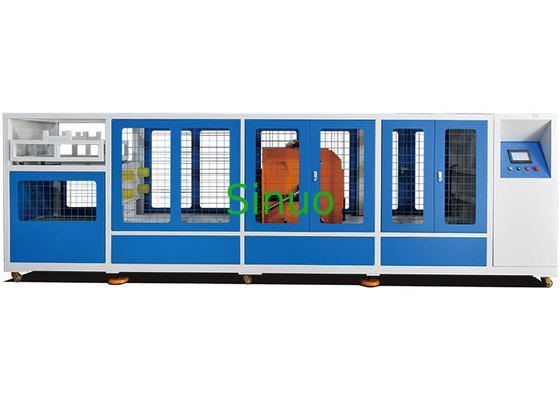

IEC60601-1 Medical Electrical Equipment Impact Testing Apparatus
Product overview:
This Impact Testing Apparatus is used for moving medical electrical equipment or moving parts of medical electrical equipment.
It can evaluate whether the mechanical strength of medical electrical equipment, or moving parts of medical electrical equipment, is subject to unacceptable risk to the equipment when subjected to rough handling and movement. The motor-driven manipulator pushes the sample at a speed of 0.8m/s±0.1m/s to realize the upper step impact test, the lower step impact test and the door frame impact test on the water platform.
The device includes an elongated work table (track), with a 40mm high step in the middle of the table, and a 40mm wide hardwood at the end; including a servo motor, a reducer and a guide rail drive mechanism. Equipment dimensions: about: 4000 × 1300 × 1850 (mm) W × D × H, equipment weight: 350kg
Technical parameters:
| Station | Single station, can be customized |
| Electrical control method | PLC intelligent integrated control, color man-machine touch interface operation |
| Test size range |
The distance between casters is not more than 80cm, the width is not more than 80cm, and the height is not more than 100cm |
| Drive mode | Servo motor + precision reducer drive |
| Specimen clamping method | Mechanical clamping |
| Test items and action process |
1. Impact test on steps: move from left to right, impact the middle obstacle 2. Down-step impact test: move from right to left and push down from the middle obstacle 3. Door frame impact test: move from the middle to the right, impact the door frame obstacle |
| Linear stroke | 0-3600mm, can be preset |
| Test speed | 0-0.85m/s can be preset, can be preset (0.8±0.1m/s) |
| Test count | 0~999999 times, can be preset |
| Upper step impact test obstacle | 40mm steps, located in the middle of the platform, width 1000m |
| Descending Step Impact Test Obstacles | |
| Door frame impact test obstacle | WDH=40mm×40mm×1500mm, located at the right end |
| Safety protection | Fences all around |
|
|
