IEC 60950-1 Clause 2.10.8.2 High Temperature Oven Test Equipment

IEC 60950-1 Clause 2.10.8.2 High Temperature Oven Test Equipment

MOQ: 1
Price: Negotiable
Standard Packaging: Standard Exporting Plywood Case
Delivery Period: 30 Days
Payment Method: L/C, T/T
Supply Capacity: 20 Sets Per Month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN889
Applied Standard:
IEC 60950-1
Applied Clause:
2.10.8.2
Inner Chamber Size:
Customized
Temperature Range:
Rt+10~250℃
Humidity Fluctuation:
±1℃
Heating Method:
Heater
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
Standard Exporting Plywood Case
Delivery Time:
30 Days
Payment Terms:
L/C, T/T
Supply Ability:
20 Sets Per Month
High Light:

High Temperature Oven Test Equipment

,

IEC 60950-1 Oven Test Equipment

,

Clause 2.10.8.2 Oven Test Equipment

Product Description

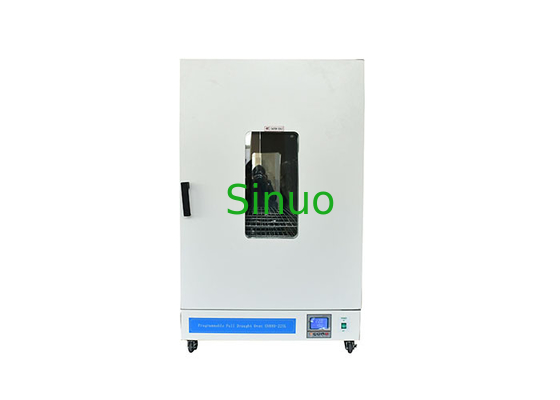

IEC 60950-1 Clause 2.10.8.2 The High Temperature Oven Test Equipment



Product Information:

The High Temperature Oven Test Equipment is designed and manufactured according to the standard requirement of IEC 60950-1:2013 clause 2.10.8.2, IEC 60950-1: 2005, clause 4.2.7, IEC 60695-10-3 and etc.



This equipment is also called "digital display blast drying oven", "high-temperature oven", and "high-temperature aging oven". Widely used in laboratories, electronic communications, auto parts, plastics, cables, electroplating, hardware, optoelectronics, plastic products, molds, shoe materials, spraying, printing, medical, aerospace, and institutions of higher learning and other industries.



The chamber body is made of mirror stainless steel argon arc welding, and the box body is made of high-quality steel plate, which is beautiful and novel; adopt microcomputer P.I.D temperature controller with over-temperature deviation protection and digital display, with timing function to control the temperature accurately and reliably; the hot air circulation system consists of a fan that can continuously rotate at high temperatures and a suitable air duct. It improves the temperature uniformity in the working room.



Technical Parameters

Applied standard IEC 60950-1
Applied clause 2.10.8.2
Model Tl-k35 Tl-k136 Tl-k225 Tl-k640
Inner chamber size (mm) 340*320*320 550*550*450 750*600*500 1000*800*800
Outer chamber size (mm) 620*530*490 730*840*670 1320*1050*950 1880*980*800
Temperature range Rt+10~250℃
Humidity fluctuation ±1℃
Power supply AC 220v /380v;50hz
Heating method Heater
Temperature setting method Digital display, adjustable
Inner chamber material Stainless steel
Outer chamber material Cold rolled plate with stoving vanish
