Walk In Environmental Test Chamber For IEC 62368-1 Video Information Equipment

Walk In Environmental Test Chamber For IEC 62368-1 Video Information Equipment

MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 1 Month
Payment Method: L/C, T/T, Western Union, MoneyGram
Supply Capacity: 5 Sets Per Month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN886-2880L
Working Volume:
Can Be Customized
Temperature Range:
Can Be Customized
Humidity Range:
Can Be Customized
Temperature Uniformity:
Can Be Customized
Temperature Fluctuation:
Can Be Customized
Temperature Deviation:
Can Be Customized
Minimum Order Quantity:
1
Price:
Customized
Packaging Details:
Plywood
Delivery Time:
1 Month
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Supply Ability:
5 Sets Per Month
High Light:

IEC 62368-1 Environmental Test Chamber

,

clause 4.1.4 Environmental Test Chamber

Product Description



Programmable Enviromental Test Chamber for TV Video Equipment



System Overview:

This programmable temperature chamber is required by IEC 62368-1:2018 clause 4.1.4, Y4.4, Y6.2, etc.

This test chamber is used for cold, heat, humidity and dryness testing of raw materials and devices such as electronics, electricians, electrical appliances, plastics, etc. The purpose is to confirm the products reliability of storage and transportation under high and low temperature alternating heat and humidity.

It conforms to standards:

IEC60068-2-1:2007 “Environmental Testing-Part 2-1: Tests-Test A: Cold, IDT”

IEC60068-2-2:2007 “Environmental Testing-Part 2-1: Tests- Test B-Dry heat, IDT”

IEC60068-2-78:2012 “Environmental Testing-Part 2-78: Tests-Test Cab: Damp heat, steady state, IDT”

IEC60068-2-30:2005 “Environmental Testing-Part 2-30: Tests-Test Db: Damp heat, cyclic (12h+12h cycle), IDT”



Features:

1. The test system has advanced and reasonable structural design, standardized manufacturing process, beautiful appearance and generous appearance.
2. The main functional components of the test chamber are world famous branded ones. The test chamber has best control of noise and energy saving.
3. The matching of components and assembly is good. The main functional components are imported from the internationally branded companies, which improves the safety and reliability of the test chamber, and can ensure the long-term, high-frequency usage purposes.
4. The equipment has good operability, maintainability, good temperature stability and durability, good safety performance. It does not pollute the environment and endanger human health.



Main Technical parameters:

Volume, size and weight

Nominal content volume

2880L (can be customized)

Inner chamber size

W 2400×D 800×H 1500 (mm)

External dimensions

Approx. W3100×D1320×H2100 (mm)

Weight

Approx. (1500) KG

Performance

Temperature range

-40 ℃~+85℃ (C type) Air-cooled type (can be customized)

Humidity range

(30 ~ 95)% RH (can be customized)

Temperature fluctuation

≤0.5℃ (The temperature fluctuation is half of the difference between the measured maximum temperature and the minimum temperature at the center point)

Temperature uniformity

≤2.0℃ (Temperature uniformity is the arithmetic mean of the difference between the highest and lowest temperature measured in each test)

Humidity deviation

≤ 2%R.h (>75%), 3%R.h. (<75%)

Heating time

RT~ 100℃ (2℃-3℃)/min

Cooling time

RT~ -40℃(0.7℃-1℃)/min

Working noise



80dB(A) (1m in front of the gate, 1.2m above the ground, in free space)

Structural characteristics

Overall structure



1. Integral, modular design

2. The equipment is divided into the following parts: cabinet part, air circulation part, refrigeration part, heating system, humidification system, electrical control part



Thermal insulation structure

Outer wall material: double-sided galvanized steel, surface spray treatment or Q235 steel, surface pickling, phosphating, surface spray treatment

Inner wall material: SUS304 stainless steel plate
Insulation material: special composite with special heat insulation performance insulation material: rigid polyurethane board and glass wool

Standard configuration of test chamber

Power cord (3 meters) 1pc (also can be adjusted according to user site conditions)
Over temperature protector 1pc
Lead hole (ф100) 1pc (placed on the left side of the equipment, equipped with stainless steel cover)

Load bearing

The load-bearing capacity of the sample rack is not less than 30KG/layer

Load-bearing capacity of the bottom plate of the test chamber: ≥100Kg/m2 (uniform load)

Observation window

One piece of window is placed on the gate, the size of the observation window is: height 480mm×width 350mm, the heating wire of the observation window is automatically turned on during the low temperature test to prevent condensation and frost, to ensure the test situation inside the chamber can be observed through the observation window

Lighting

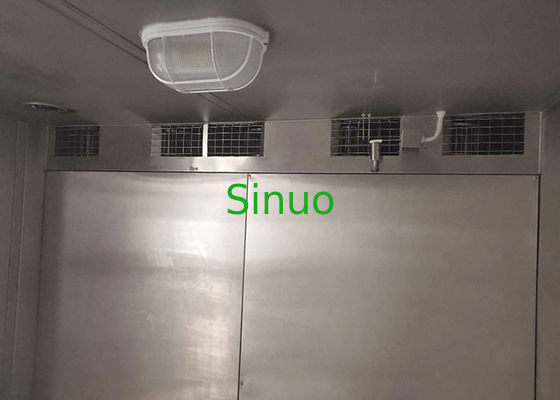

The door of the chamber is equipped with a moisture-proof LED lighting lamp, which is convenient for observing the test samples in the chamber. The lighting is controlled by a switch on the control panel outside the chamber

Control operation interface

Touch control screen, main power switch, buttons, over-temperature protector, etc.

Machinery room

Refrigeration unit, power distribution control cabinet, exhaust fan, etc.

Power distribution control cabinet

Cooling fan

Switchboard



Main Components of Refrigeration system:
Walk In Environmental Test Chamber For IEC 62368-1 Video Information Equipment 0
