| MOQ: | 1 |
| Price: | Customized |
| Standard Packaging: | Plywood |
| Delivery Period: | 1 Month |
| Payment Method: | L/C, T/T, Western Union, MoneyGram |
| Supply Capacity: | 10 Sets Per Month |

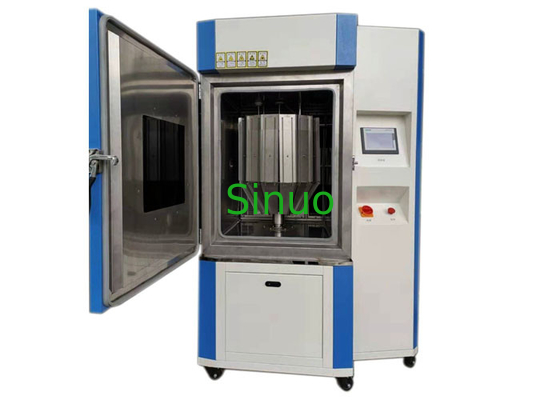

Air-cooled Xenon Accelerated Aging Environmental Chamber for Weathering Resistance Test
Overview:
This Xenon est chamber uses a xenon lamp to simulate the effect of sunlight, condensation moisture is used to simulate rain and dew, and the material to be tested is placed in a cycle of alternating light and moisture at a certain temperature. The test can be performed in days or weeks. Reproduce the hazards that occur outdoors for months or even years. Artificial accelerated aging test data can help select new materials, transform existing materials, and evaluate how changes in formulations affect product durability.
It conforms to follwoing standards:
ISO 4892-3:2006 “Plastics-Methods of exposure to laboratory light sources-Part 3: Fluorescent UV lamps”
IEC60068-2-5 “Environmental testing -Part 2-5: Tests-Test Sa: Simulated solar radiation at ground level and guidance for solar radiation testing, IDT”
GBT2423.24-2013 “Environmental Testing-Part 2: Test Methods-Test Sa: Simulated solar radiation at ground level and guidance for solar radiation testing”
ASTMG155,ISO10SB02/B04,SAEJ2527,SAEJ2412
Structure and configuration:
1. Enclosure material:SUS304 Stainless steel dusting;
2. Inner chamber material:SUS304 Stainless steel plate;
3. Door: Silicone rubber tight sealing device;
4. Sample frame:Stainless steel,Sample fixing position adjustable, standard stamping forming template;
5. Controller: PLC &Touch Screen,programmable;
6. Convection: Long axis special motor;
7. Equipment operation timing controller;
8. Black panel thermometer BPT;
9. Special filter (sun filter);
10. Irradiance meter: Intelligent automatic irradiation intensity compensation, automatic correction of irradiance.
Technical Parameters:
| Working size D×W×H | 600×750×600mm | |
| Dimensions D×W×H | 1350X1300X1950mm | |
| Power(kw) | 13KW | |
| Performance | Temperature range inside the box | RT+38±3℃ |
| Blackboard temperature range | 50℃～80℃ | |
| Humidity range | 1.25~90% RH±5% 2. Humidity accuracy: ≤±5% | |
| Rainfall time | 1 to 9999 hours and 59 minutes adjustable | |
| Rainfall cycle | 1 to 240 minutes, adjustable interval (off) | |
| Spectral wavelength | 290-2400nm | |
| Xenon radiation intensity | 550-1120W/m2 Precision≦±10W/m2 | |
| Xenon lamp power | 2.5KW (air-cooled full solar spectrum long arc xenon lamp) X 3 | |
| Xenon lamp total power | 7.5KW lifetime: 1200 hours | |
| Distance from the center of the arc to the specimen | 200mm effective exposure area ≥ 4500cm2 | |
| Sample holder | 750*600mm | |
| Temperature and humidity operation control system | Water spray system | The water spray time can be set in 59 minutes, and the stop spray time can be set in 999 minutes. |
| Range of accuracy | Setting / indication accuracy: temperature 0.1 ° C, humidity 1% RH | |
| Temperature and humidity sensor | Platinum resistance. PT100Ω/MV | |
| Heating system | Fully independent system, nickel-chromium alloy electric heating heater | |
| Humidification system | Externally isolated, all stainless steel shallow surface evaporative humidifier | |
| Blackboard temperature | Bimetal blackboard thermometer | |
| Temperature Controller | Imported Weilun color touch screen and Xinjie PLC module control | |
| Circulatory system | Temperature and low noise air conditioning type motor. Multi-leaf centrifugal wind wheel | |
| Material | Outer box material | High quality carbon steel plate, phosphating electrostatic spray treatment / SUS304 stainless steel matte line hairline treatment |
| Inner box material | SUS304 high quality stainless steel light board | |
| Sample holder material | SUS304 high quality stainless steel strip | |
| Door frame insulation | High temperature resistant aging silicone rubber door seal | |
| Standard configuration | 1 set of radiation-proof glass window and 3 sets of xenon lamp | |
| safety protection | Leakage, short circuit, over temperature, water shortage, motor overheating, over current protection | |
| voltage | AC380V±10％ 50±0.5Hz Three-phase five-wire system | |
| Ambient temperature | 5℃～＋30℃ ≤85％RH | |
