| MOQ: | 1 |
| Price: | Customized |
| Standard Packaging: | Plywood |
| Delivery Period: | 45 Days |
| Payment Method: | L/C, , T/T, Western Union, MoneyGram |
| Supply Capacity: | 1 set per month |

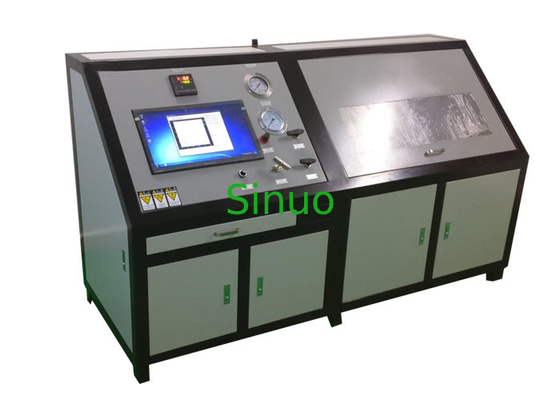

42MPa Car Refrigerating Compressor High Pressure Resistance Test Bench Computer Control
Standards & Clauses:
IEC60335-2-24:2017 “Household and similar electrical appliances-Safety-Part2-24: Particular requirements for refrigerating appliances, ice-cream appliances and ice-makers, IDT” clause 22.7 and clause 22.103.
Samples and Restrictions:
Compressive appliances using flammable refrigerants and appliances using transcritical refrigeration systems.
Application:
Used for pressure resistance and leakage test of compression appliances.
Test Principle:
The high pressure is output from the booster pump of the system according to the different pressure of the sample, and then the pressure resistance performance of the sample is inspected.
Structure:
It consists of electrical control system, circulation system and pressure control system. The workpiece can be quickly installed manually and controlled.
Use Environment:
Power supply: AC380V±10%/50-60Hz or match client’s local power supply requirements
Air source: 0.5-0.7MPa compressed air
Use place: atmospheric pressure 80 ~ 106kpa; ambient temperature 5 ~ 40 ° C; relative humidity (20 ~ 80) % RH; no vigorous shaking, vibration, electromagnetic interference, dust, explosive and corrosive gas, with good heat dissipation
Technical Parameters:
| Test Station | Single station, multi stations can be customized |
| Electrical Control Method | Computer intelligent control and operation |
| Test Pressure | 1.5-42MPa |
| Pressure Control Accuracy | +2% of the upper limit, -1% of the lower limit |
| Test Medium | Clear water |
| Pressure Control Method | Computer control |
| Ambient Temperature | Room temperature |
| Pressurized Flow | 2.6L/min |
| Drive Pressure | 0.2-0.8MPa |
| Drive Flow | 0.3-1 Cubic/minute |
| Time Display | Computer display |
| Pressure Curve Display | Can be displayed in real time, and zoomed in and out |
| Print Report | After the test is completed, the test report can be printed, and the test data can be saved. |
| Test Data Storage | Reports can be saved into excel forms, and the data collected each time can be saved. |
| Pressure Display Accuracy | 0.1MPa |
| Safety Protection | |
| Power | Leakage protection, overload and short circuit protection |
| Motor | Overload, short circuit protection |
