EN 60898-1 Circuit Breaker Energy Pendulum Impact Test Equipment

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  EN 60898-1 Circuit Breaker Energy Pendulum Impact Test Equipment

Product Details:
Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN2157-1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton Box
Delivery Time: 7 Days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50 sets per month
Detailed Product Description
Control Mode: Mechanical Impact Energy: 0.2, 0.35, 0.5, 0.7, 1.0
Impact Element (equivalent Mass): 150g±1g (200g), Head Is R10 Polyamide Hemisphere Applied Standard: EN 60898-1
Swing Tube: Length 1000 Mm, Outer Diameter 9 Mm, Wall Thickness 0.5 M Size: WDH=about 600×600×1600mm
High Light:

Mechanical Pendulum Impact Test Equipment

,

GB10963.1 Pendulum Impact Test Equipment

EN 60898-1 Circuit Breaker Energy Pendulum Impact Test Equipment





Product overview
This equipment is also called Impact resistance test equipment. It adopts a floor-standing structure and does not require installation. Specimen mounting bracket up, down, left and right.
The front and rear three axes are adjustable, and the swing lever can adjust the release angle through the pivot, so as to achieve impact on the front and side of the sample, covering impact test requirements for most similar products.



Equipment principle:
Designed according to the requirements of
EN 60898-1, refer to test Eha: pendulum, impact element
It is freely released at a certain drop height (angle conversion) through a 1 meter swing tube, and hits at the lowest point in the vertical direction
The sample undergoes the transformation from gravitational potential energy to kinetic energy to achieve the purpose of impact test on the sample.



Test process:
According to the standard requirements, select the fixture to install the sample, and the impact element just fits the impact point in the vertical free state.
According to the standard impact energy requirement of 0.2J, rotate the swing arm until the scale pointer indicates the drop height of the angle plate 100mm (angle conversion), and lock the release device. Note that for energy testing required by other standards, you can select the drop height on the angle plate as shown in the table below. The device is only equipped with an impact of 0.2kg equivalent mass.
Pull out the spring release device, the impact element is released freely through the 1m pendulum tube, and hits the specimen at the lowest point in the vertical direction.
Adjust the three-axis mechanism to make the sample repeat the impact test on different impact positions according to the above method according to the requirements of the standard.



Main Technical Parameter:

Control mode Mechanical
Impact energy 0.2, 0.35, 0.5, 0.7, 1.0
Impact element (equivalent mass) 150g±1g (200g), head is R10 polyamide hemisphere
Swing tube Length 1000 mm, outer diameter 9 mm, wall thickness 0.5 m
Size WDH=about 600×600×1600mm

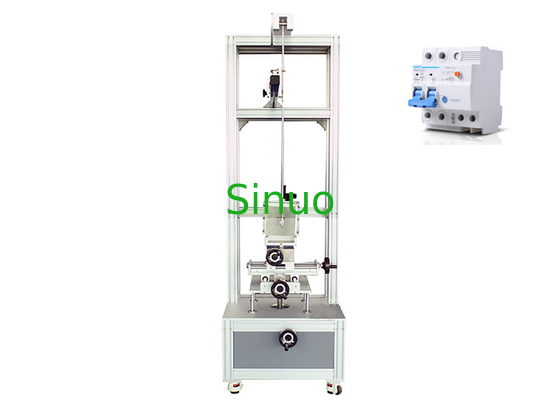

EN 60898-1 Circuit Breaker Energy Pendulum Impact Test Equipment 0

EN 60898-1 Circuit Breaker Energy Pendulum Impact Test Equipment 1
