IEC 60669-1 Flush Mounting Box Screwless Terminals Deflection Test Apparatus

MOQ: 1
Price: Customized
Standard Packaging: Exporting package
Delivery Period: 20 Days
Payment Method: T/T
Supply Capacity: 30 sets per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate(Cost Additional )
Model Number
SN2112
Deflection Angle:
0-360°
Test Current:
Up To 100 A
Deflection Force:
0.25N, 0.5N, 1.0N
Deflection Direction:
Any Of 12 Directions,
Angle Space:
Spaced 30° ±3° Apart
Test Content:
Deflection And Voltage Drop
Highlight:

Screwless Terminals Deflection Test Apparatus

,

IEC 60669-1 Terminals Deflection Test Apparatus

Product Description
IEC 60669-1 Flush Mounting Box Screwless Terminals Deflection Test Apparatus
This test apparatus complies with IEC 60884-1:2022 Clause 12.3.11, Clause 12.3.12 and Figure 14, as well as IEC 60669-1 Clause 12.3.11.
It simulates a real-world installation scenario: rigid solid conductors are often bent and forced sideways when fitted inside a flush mounting box for wall switches and sockets. The equipment verifies whether screwless terminals can maintain reliable clamping force even when conductors deflect during regular wiring work.
During testing, the tester deflects rigid solid conductors mounted in screwless terminals and monitors voltage drop continuously. This evaluation accurately checks the long-term clamping capacity and stable contact performance of push-in / screwless terminals.
IEC 60669-1 Flush Mounting Box Screwless Terminals Deflection Test Apparatus
Technical Specifications
Parameters Name Parameter Data
Power supply Match client's local power supply conditions
Deflection angle 0-360°
Deflection direction In any of the 12 directions differing from each other by 30°±3°
Deflection force 0.25N, 0.5N, 1.0N
Force applied direction Perpendicular to the undeflected conductor
Test current Max. 100A
Power supply AC220V±10%, 60Hz
Key Features
  • Simulates wire offset during wiring inside flush mounting boxes
  • Meets IEC 60884-1:2022 and IEC 60669-1 standards
  • Evaluates contact performance by voltage drop test
  • Adjustable load current capability
  • Standard fixtures for wall socket and switch manufacturers & testing labs
  • User-friendly operation with stepless adjustable load current
  • Sample fixtures manufactured strictly per official IEC standard drawings

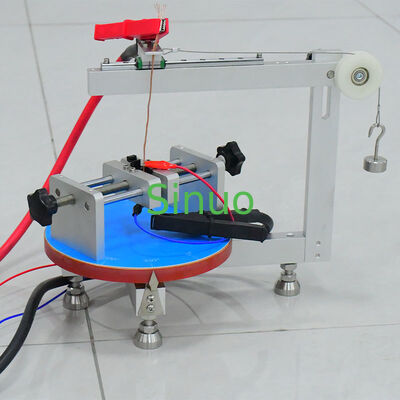

Close-up view of IEC 60669-1 deflection test apparatus components IEC 60669-1 deflection test apparatus in operation
