IEC60335-2-17 Electric Blanket Bending Test Machine 125mm/s

MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 20 business days
Payment Method: T/T,Western Union
Supply Capacity: 20 Sets Per Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN1153
Test Standard:
IEC60335-2-17
Bending Speed:
125mm/s, Adjustable
Max. Sample Size:
L1000×W1000mm
Test Station:
Single Station
Roller Diameter:
Φ25mm
Direction Switching:
Manual
Test Times:
0 - 999999 Times, Pre-settable
Load Force:
0.5kg Weight Or 3g/mm Load Force
Product Description
IEC60335-2-17 Electric Blanket Bending Test Machine 125mm/s
Product Overview
IEC60335-2-17 Electric Blanket Bending Test Machine is designed for testing the bending mechanical strength of electric heating pads to verify their safety during normal use (125mm/s).
Standards & Compliance
IEC60335-2-17:2019 "Household and similar electrical appliances-Safety-Part2-17:Particular requirements for blankets, pads, clothing and similar flexible heating appliances".
Sample Applications
Electric heating pads and other similar flexible heating appliances for heating beds or the human body
Test Principle
The equipment is motor-driven and automatically stops after the required number of tests. During testing, one end of the heating pad is fixed to the drive unit, which moves the heating pad horizontally back and forth at 125 mm/s. The heating pad is placed on a roller with a diameter of Φ25 mm. A 0.5 kg weight or a load of 3 g/mm is hung at the end, and the test is repeated for 2000 cycles. Then, the sample is rotated 90° and clamped, and another 2000 cycles are performed.
Structure & Features
  • Floor-standing structure, motor-driven, and touchscreen operated
  • Control cabinet external dimensions: WDH = 1500 × 1200 × 1200 (mm)
  • Equipment weight: 150 kg
Operating Environment
Power supply: AC220V±10%/50-60Hz, power 0.75KW
Technical Parameters
Parameter Specification
Test station Single station
Electrical control method Instrument control, button operation, optional touchscreen operation
Maximum size of electric blanket L1000×W1000mm
Bending speed 125mm/s, adjustable
Roller diameter Φ25mm
Number of tests 0 - 999999 times, pre-settable
Load force 0.5kg weight or 3g/mm load force
Direction switching Manual
Safety protection Electrical leakage protection, overload protection, emergency stop protection
Product Images

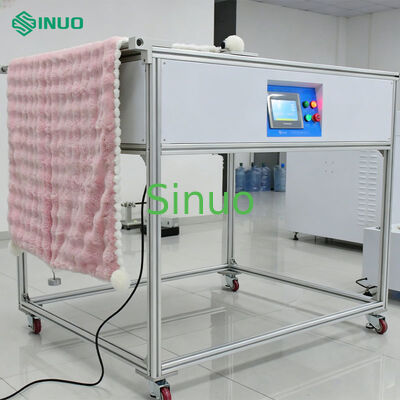

IEC60335-2-17 Electric Blanket Bending Test Machine 125mm/s 0 IEC60335-2-17 Electric Blanket Bending Test Machine 125mm/s 1
